Q-2Y03Q0008.25M
ActiveAmphenol Custom Cable
COAX CBL SMA TO SMB 9.8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2Y03Q0008.25M |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMB Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-58 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length [x] | 9.843 " |
| Length [x] | 250 mm |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 84.39 | |
| 25 | $ 83.51 | |||
| 50 | $ 82.64 | |||
| 100 | $ 81.77 | |||
| 250 | $ 80.90 | |||
Description
General part information
Q-2Y03Q0 Series

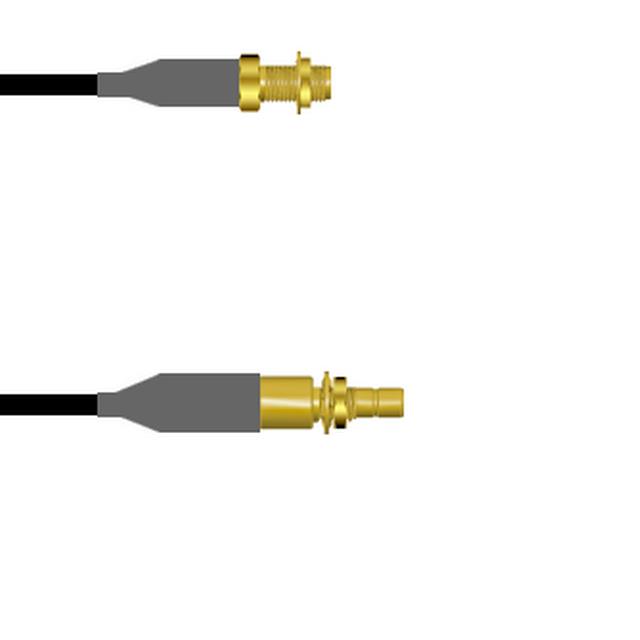

Cable Assembly Coaxial SMA to SMB RG-58 9.843" (250.00mm)
