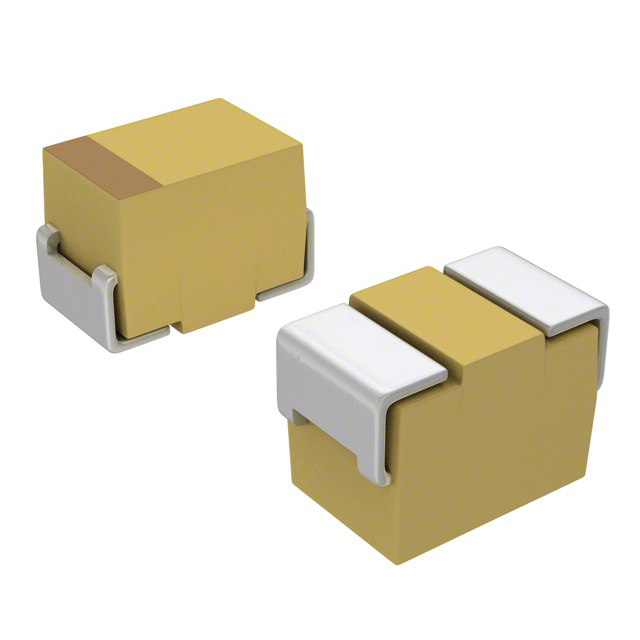

NOJP225M010SWJ

Obsolete

Kyocera AVX

CAP NIOB OXID 2.2UF 20% 10V 0805

Search across all available documentation for this part.

Obsolete

Kyocera AVX

CAP NIOB OXID 2.2UF 20% 10V 0805

Technical Specifications

Parameters and characteristics for this part

Specification	NOJP225M010SWJ

Capacitance	2.2 µF
Current - Leakage	1 µA
Dissipation Factor	8 %
ESR (Equivalent Series Resistance)	8.3 Ohms
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Manufacturer Size Code	P
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Size / Dimension [x]	2.05 mm
Size / Dimension [x]	0.081 in
Size / Dimension [y]	1.35 mm
Size / Dimension [y]	0.053 in
Supplier Device Package	0805 (2012 Metric)
Tolerance	20 %
Voltage - Rated	10 V

Part	Current - Leakage	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Dissipation Factor	Capacitance	Voltage - Rated	Tolerance	ESR (Equivalent Series Resistance)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Manufacturer Size Code	Package / Case
Kyocera AVX NOJP225M010SWJ	1 µA	1.35 mm	2.05 mm	0.081 in	0.053 in	8 %	2.2 µF	10 V	20 %	8.3 Ohms	Surface Mount	105 ░C	-55 °C	1.5 mm	0.059 "	0805 (2012 Metric)	P	0805
Kyocera AVX NOJP685M004RWJ	1 µA	1.35 mm	2.05 mm	0.081 in	0.053 in	6 %	6.8 ÁF	4 V	20 %	5.3 Ohms	Surface Mount	105 ░C	-55 °C	1.5 mm	0.059 "	0805 (2012 Metric)	P	0805

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.2 µF Niobium Oxide Capacitor 10 V 0805 (2012 Metric) 8.3 Ohms
