430526-501

Active

Laird Thermal Systems, Inc.

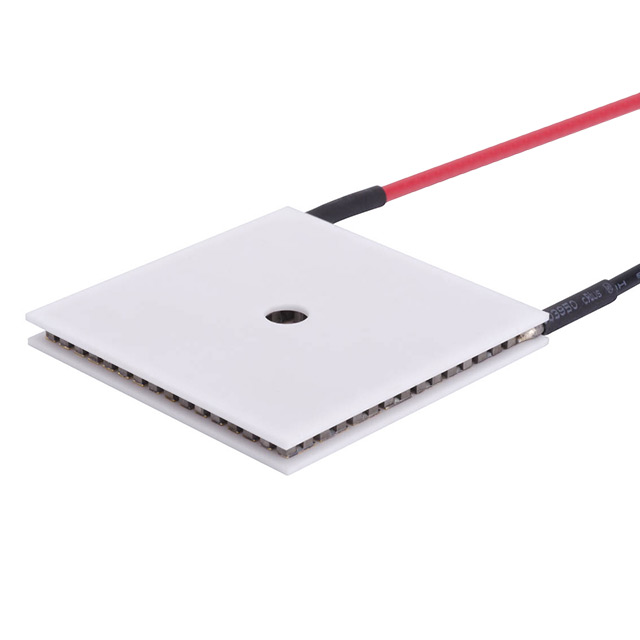

PELTIER SH14,125,06,L,RT

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER SH14,125,06,L,RT

Technical Specifications

Parameters and characteristics for this part

Specification	430526-501

Current - Max [Max]	6 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3.81 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	50.4 W
Size / Dimension [x]	39.88 mm
Size / Dimension [y]	39.88 mm
Voltage - Max [Max]	14.3 V

Part	Operating Temperature	Features	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Number of Stages	Height [z]	Current - Max [Max]	Qmax @ Th
Laird Thermal Systems, Inc. 430526-501	80 °C	Lead Wires Sealed - Silicone RTV	14.3 V	39.88 mm	39.88 mm	67 °C	1	3.81 mm	6 A	50.4 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 50.4W @ 25°C 6 A 80°C

Technical documentation and resources
