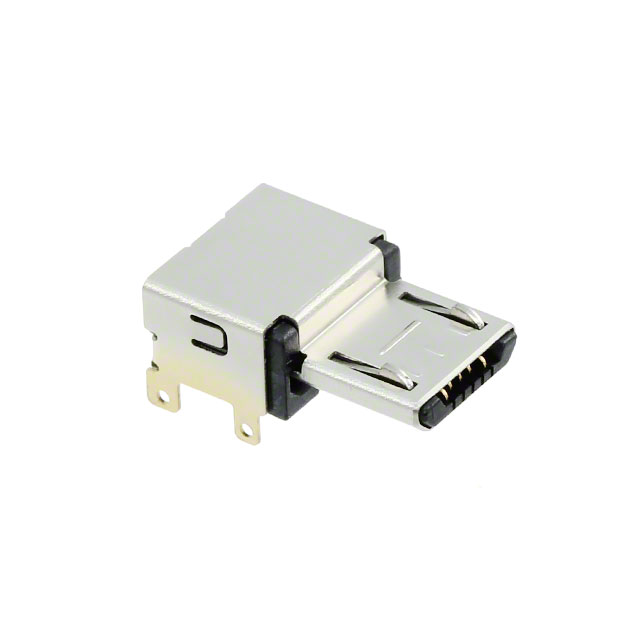

ZX60-B-5S(31)
ActiveHirose Electric USA, Inc.
CONN PLUG USB2.0 MICRO B SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
ZX60-B-5S(31)
ActiveHirose Electric USA, Inc.
CONN PLUG USB2.0 MICRO B SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZX60-B-5S(31) |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A |
| Gender | Plug |
| Insulation Color | Black |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.53 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.24 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.99 | |||
| Digi-Reel® | 1 | $ 1.53 | ||
| 10 | $ 1.33 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.24 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.99 | |||
| Tape & Reel (TR) | 1300 | $ 0.85 | ||
| 2600 | $ 0.80 | |||
| 3900 | $ 0.76 | |||
| 6500 | $ 0.73 | |||
| 9100 | $ 0.71 | |||
| 13000 | $ 0.70 | |||
Description
General part information
ZX60 Series
USB - micro B USB 2.0 Plug Connector 5 Position Surface Mount, Right Angle; Through Hole
