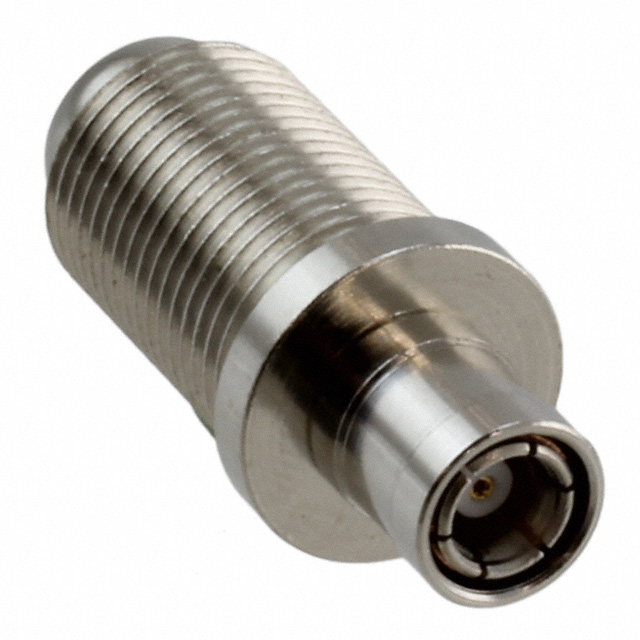

242223

Active

Amphenol RF

CONN ADAPT SMB PLUG TO F JACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	242223

Adapter Series	SMB to F
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMB Plug
Convert To (Adapter End)	Female Socket, F Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

2422 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Fastening Type	Convert To (Adapter End)	Dielectric Material	Mounting Type	Style	Center Contact Material	Conversion Type	Frequency - Max [Max]	Body Material	Convert From (Adapter End)	Impedance	Body Finish	Center Contact Plating	Center Gender	Adapter Series	Mating Cycles	Features	Includes	Mounting Feature
Amphenol RF 242260	-65 ░C	165 °C	Plug to Plug	Snap-On Threaded	Male Pin SMA Plug	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Brass	Between Series	18 GHz	Brass	QMA Plug Male Pin	50 Ohms	White Bronze	Gold	Male to Male
Amphenol RF 242223	-65 ░C	165 °C	Plug to Jack	Snap-On Threaded	F Jack Female Socket	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Beryllium Copper	Between Series	2 GHz	Brass	Female Socket SMB Plug	50 Ohms	Nickel	Gold	Female to Female	SMB to F
Amphenol RF 242217	-65 ░C	165 °C	Plug to Jack	Snap-On Threaded	Female Socket N Jack	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Phosphor Bronze	Between Series	10 GHz	Brass	1.0/2.3 Plug Male Pin	50 Ohms	Nickel	Gold		N to 1.0/2.3
Amphenol RF 242282	-40 °C	85 °C	Plug to Jack		4.1/9.5 Plug Male Pin	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Copper Alloy	Between Series	3 GHz	Brass	Female Socket N Jack	50 Ohms	Silver	Silver		4.1/9.5 N	500	Low PIM
Amphenol RF 242218	-65 ░C	165 °C	Jack to Jack	Snap-On Threaded	1.0/2.3 Jack Female Socket	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Phosphor Bronze	Between Series	10 GHz	Brass	Female Socket N Jack	50 Ohms	Nickel	Gold	Female to Female	N to 1.0/2.3
Amphenol RF 242225	-65 ░C	165 °C	Jack to Jack	Snap-On	Male Pin U.FL (UMCC) Jack	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Beryllium Copper	Between Series	6000 MHz	Brass	Female Socket MMCX Jack	50 Ohms	Nickel	Gold		MMCX to U.FL (UMCC) AMC
Amphenol RF 242244			Plug to Jack	Snap-On Threaded	Male Pin U.FL (UMCC) Jack	Polytetrafluoroethylene (PTFE)		Straight	Beryllium Copper	Between Series		Brass	Female Socket SMA Jack		Nickel	Gold		SMA to U.FL (UMCC) AMC			1 Connector 1 Gasket 1 Lockwasher 1 Nut	Bulkhead
Amphenol RF 242215	-40 °C	140 °C	Jack to Jack	Snap-On Threaded	Male Pin SMB Jack	Polytetrafluoroethylene (PTFE)		Straight	Beryllium Copper	Between Series	2 GHz	Brass	F Jack Female Socket	75 Ohms	Nickel	Gold		SMB to F				Bulkhead
Amphenol RF 242263	-65 ░C	165 °C	Plug to Jack	Snap-On Threaded	Male Pin SMA Plug	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Brass	Between Series	18 GHz	Brass	Female Socket QMA Jack	50 Ohms	White Bronze	Gold
Amphenol RF 242205	-65 ░C	165 °C	Plug to Plug	Bayonet Lock Snap-On	Male Pin MCX Plug	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Beryllium Copper	Between Series	4 GHz	Brass	BNC Plug Male Pin	50 Ohms	Nickel	Gold	Male to Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 17.11

Description

General part information

2422 Series

Adapter Coaxial Connector SMB Plug, Female Socket To F Jack, Female Socket 50 Ohms
