823-S1-008-30-015191

Active

PRECI-DIP SA

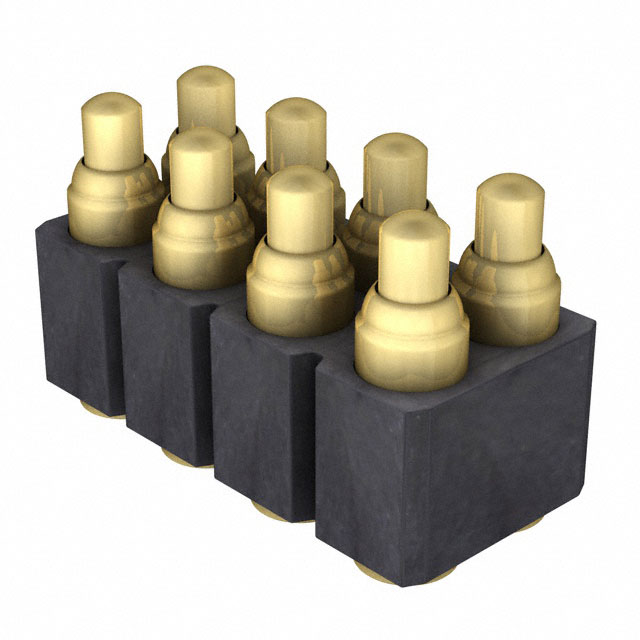

CONN SPRING PISTON 8POS SMD

Search across all available documentation for this part.

Active

PRECI-DIP SA

CONN SPRING PISTON 8POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Mounting Type	Material	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Row Spacing	Row Spacing	Number of Contacts	Pitch [x]	Pitch [x]	Number of Contacts [custom]
PRECI-DIP SA 823-S1-016-30-014101	Piston	Surface Mount	Brass Alloy	2	19.7 µin	0.5 µm	Gold	2 mm	0.079 in	16	0.079 in	2 mm
PRECI-DIP SA 823-S1-014-30-014191	Piston	Surface Mount	Brass Alloy	2	19.7 µin	0.5 µm	Gold	2 mm	0.079 in	14	0.079 in	2 mm
PRECI-DIP SA 823-S1-020-30-012191	Piston	Surface Mount	Brass Alloy	2	19.7 µin	0.5 µm	Gold	2 mm	0.079 in		0.079 in	2 mm
PRECI-DIP SA 823-S1-004-30-012191	Piston	Surface Mount	Brass Alloy	2	19.7 µin	0.5 µm	Gold	2 mm	0.079 in		0.079 in	2 mm	4
PRECI-DIP SA 823-S1-008-30-015191	Piston	Surface Mount	Brass Alloy	2	19.7 µin	0.5 µm	Gold	2 mm	0.079 in	8	0.079 in	2 mm
PRECI-DIP SA 823-S1-018-30-014191	Piston	Surface Mount	Brass Alloy	2	19.7 µin	0.5 µm	Gold	2 mm	0.079 in		0.079 in	2 mm
PRECI-DIP SA 823-S1-020-30-012101	Piston	Surface Mount	Brass Alloy	2	19.7 µin	0.5 µm	Gold	2 mm	0.079 in		0.079 in	2 mm
PRECI-DIP SA 823-S1-020-30-014101	Piston	Surface Mount	Brass Alloy	2	19.7 µin	0.5 µm	Gold	2 mm	0.079 in		0.079 in	2 mm
PRECI-DIP SA 823-S1-012-30-015191	Piston	Surface Mount	Brass Alloy	2	19.7 µin	0.5 µm	Gold	2 mm	0.079 in	12	0.079 in	2 mm
PRECI-DIP SA 823-S1-004-30-015101	Piston	Surface Mount	Brass Alloy	2	19.7 µin	0.5 µm	Gold	2 mm	0.079 in		0.079 in	2 mm	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	800	$ 5.46

General part information

8 Position Spring Piston Connector Surface Mount
