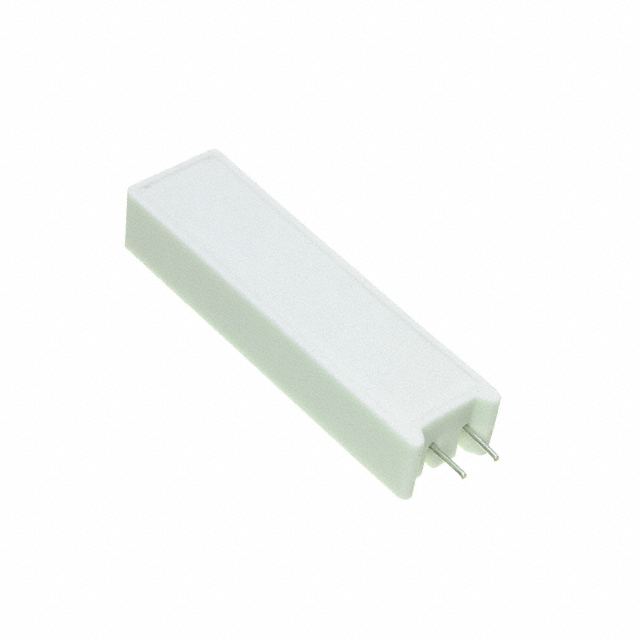

SQMR1075KJ
ActiveTE Connectivity Passive Product
RES 75K OHM 5% 10W RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SQMR1075KJ
ActiveTE Connectivity Passive Product
RES 75K OHM 5% 10W RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SQMR1075KJ |
|---|---|
| Composition | Metal Film |
| Features | Safety, Flame Proof, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 2.047 in |
| Height - Seated (Max) [Max] [z] | 52 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 10 W |
| Resistance | 75 kOhms |
| Size / Dimension [x] | 0.512 ", 13 mm |
| Size / Dimension [y] | 0.354 ", 9 mm |
| Supplier Device Package | Radial Lead |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.65 | |
| 10 | $ 0.54 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.39 | |||
| 300 | $ 0.35 | |||
| 500 | $ 0.32 | |||
Description
General part information
SQMR10 Series
75 kOhms ±5% 10W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Metal Film
