Q-3405A0003108I

Active

Amphenol Custom Cable

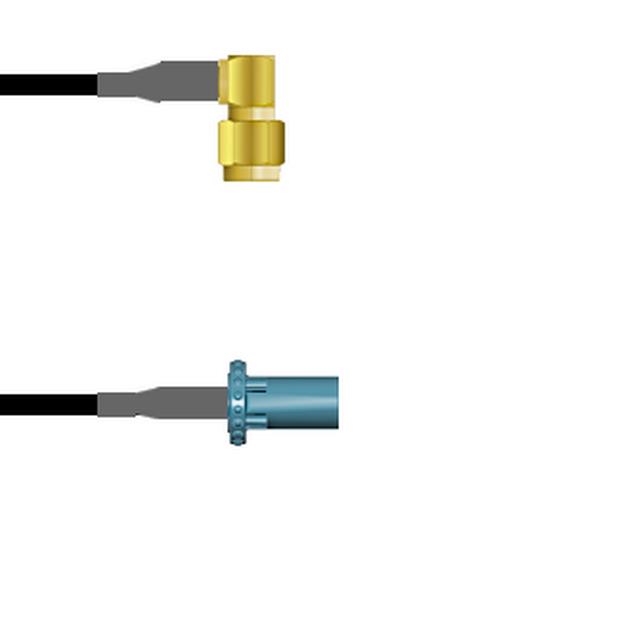

CBL ASSY SMA-FAKRA II PLG-PLG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-3405A0003108I

Active

Amphenol Custom Cable

CBL ASSY SMA-FAKRA II PLG-PLG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3405A0003108I

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra II (Gen 2.0) Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to Fakra II

Q-3405A0 Series

Part	1st Connector Mounting Type	2nd Contact Gender	2nd Connector	Style	1st Connector	Cable Type	Frequency - Max [Max]	Cable Impedance	Length	Length	Length	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	Color	Features	Connector Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-3405A0003108I	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug	SMA to Fakra II	Right Angle SMA Plug	RG-174	1 GHz	50 Ohms	2.7 m	9 ft	108 in	Male	Free Hanging (In-Line)	50 Ohms	Black	Shielded	50 Ohms
Amphenol Custom Cable Q-3405A0003036I	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug	SMA to Fakra II	Right Angle SMA Plug	RG-174	1 GHz	50 Ohms	91.44 cm		36 in	Male	Free Hanging (In-Line)	50 Ohms	Black	Shielded	50 Ohms
Amphenol Custom Cable Q-3405A00031.5M	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug	SMA to Fakra II	Right Angle SMA Plug	RG-174	1 GHz	50 Ohms	1.5 m	4.9 ft	59.1 in	Male	Free Hanging (In-Line)	50 Ohms	Black	Shielded	50 Ohms
Amphenol Custom Cable Q-3405A0003018I	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug	SMA to Fakra II	Right Angle SMA Plug	RG-174	1 GHz	50 Ohms				Male	Free Hanging (In-Line)	50 Ohms	Black	Shielded	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-3405A00050.5M	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug	SMA to Fakra II	Right Angle SMA Plug	RG-316	3 GHz	50 Ohms	50 cm		19.69 "	Male	Free Hanging (In-Line)	50 Ohms	Copper	Shielded	50 Ohms
Amphenol Custom Cable Q-3405A0005018I	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug	SMA to Fakra II	Right Angle SMA Plug	RG-316	3 GHz	50 Ohms				Male	Free Hanging (In-Line)	50 Ohms	Copper	Shielded	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-3405A0005108I	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug	SMA to Fakra II	Right Angle SMA Plug	RG-316	3 GHz	50 Ohms	2.7 m	9 ft	108 in	Male	Free Hanging (In-Line)	50 Ohms	Copper	Shielded	50 Ohms
Amphenol Custom Cable Q-3405A0003003M	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug	SMA to Fakra II	Right Angle SMA Plug	RG-174	1 GHz	50 Ohms	3 m	9.8 '	118.1 in	Male	Free Hanging (In-Line)	50 Ohms	Black	Shielded	50 Ohms
Amphenol Custom Cable Q-3405A0005009I	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug	SMA to Fakra II	Right Angle SMA Plug	RG-316	3 GHz	50 Ohms	228.6 mm		9 "	Male	Free Hanging (In-Line)	50 Ohms	Copper	Shielded	50 Ohms
Amphenol Custom Cable Q-3405A00051.5M	Free Hanging (In-Line)	Male	Fakra II (Gen 2.0) Plug	SMA to Fakra II	Right Angle SMA Plug	RG-316	3 GHz	50 Ohms	1.5 m	4.9 ft	59.1 in	Male	Free Hanging (In-Line)	50 Ohms	Copper	Shielded	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 88.54
		25	$ 86.80
		50	$ 85.07
		100	$ 83.33
		250	$ 81.60

Description

General part information

Q-3405A0 Series

Cable Assembly Coaxial SMA to Fakra II RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
