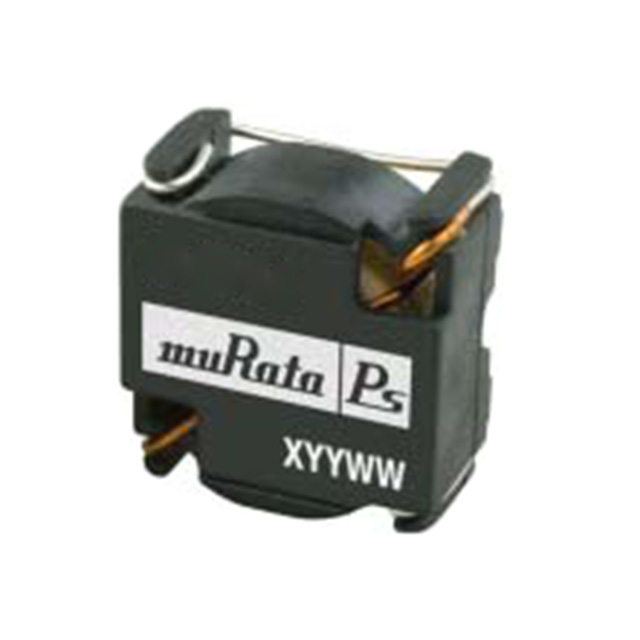

41470C

Obsolete

Murata Power Solutions Inc.

FIXED IND 47UH 2.2A 62 MOHM SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND 47UH 2.2A 62 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Current Rating (Amps)	Inductance	Inductance Frequency - Test	Shielding	Mounting Type	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. 41470C	Toroidal	0.66 "	17.53 mm	16.76 mm	0.69 in	Nonstandard	85 °C	-40 °C	62 mOhm	2.2 A	47 µH	10 kHz	Unshielded	Surface Mount
Murata Power Solutions Inc. 41220C	Toroidal	0.66 "	17.53 mm	16.76 mm	0.69 in	Nonstandard	85 °C	-40 °C		3.3 A	22 µH	10 kHz	Unshielded	Surface Mount	33 mOhm
Murata Power Solutions Inc. 41331C	Toroidal	0.66 "	17.53 mm	16.76 mm	0.69 in	Nonstandard	85 °C	-40 °C		830 mA	330 µH	10 kHz	Unshielded	Surface Mount	462 mOhm
Murata Power Solutions Inc. 41330C	Toroidal	0.66 "	17.53 mm	16.76 mm	0.69 in	Nonstandard	85 °C	-40 °C		2.7 A	33 µH	10 kHz	Unshielded	Surface Mount	38 mOhm
Murata Power Solutions Inc. 41100C	Toroidal	0.66 "	17.53 mm	16.76 mm	0.69 in	Nonstandard	85 °C	-40 °C		4.7 A	10 µH	10 kHz	Unshielded	Surface Mount	24 mOhm
Murata Power Solutions Inc. 41101C	Toroidal	0.66 "	17.53 mm	16.76 mm	0.69 in	Nonstandard	85 °C	-40 °C		1.47 A	100 µH	10 kHz	Unshielded	Surface Mount	158 mOhm
Murata Power Solutions Inc. 41151C	Toroidal	0.66 "	17.53 mm	16.76 mm	0.69 in	Nonstandard	85 °C	-40 °C	247 mOhm	1.16 A	150 µH	10 kHz	Unshielded	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

47 µH Unshielded Toroidal Inductor 2.2 A 62mOhm Max Nonstandard
