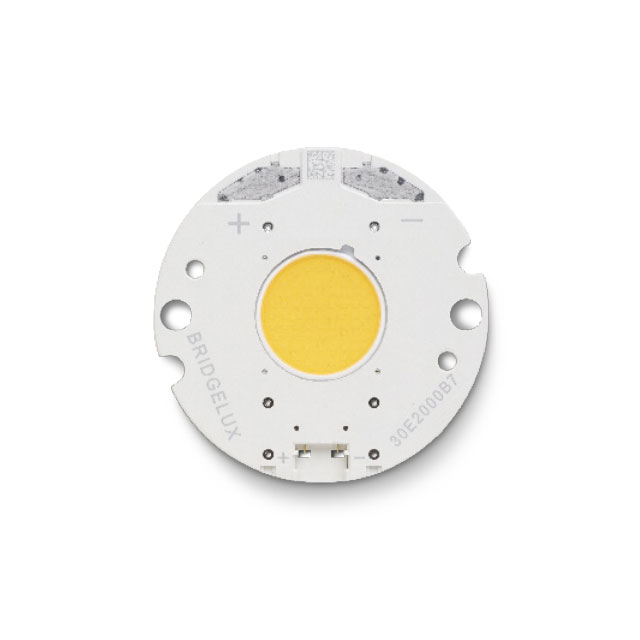

BXRC-65E2001-C-83

Active

BRIDGELUX

LED COB VERO 13C WHT ROUND 6500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-65E2001-C-83

Active

BRIDGELUX

LED COB VERO 13C WHT ROUND 6500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRC-65E2001-C-83

CCT (K)	6500 K
Color	Cool, White
Configuration	Round
CRI (Color Rendering Index)	80
Current - Max [Max]	1.75 A
Current - Test	500 mA
Height [z]	1.8 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	13.3 mm
Lumens/Watt @ Current - Test	181 lm/W
Luminous Flux @ Current/Temperature	3015 lm
Size / Dimension [diameter]	36.2 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	33.4 V

BXRC-65 Series

...

Part	Temperature - Test	Height [z]	Color	Features	Luminous Flux @ Current/Temperature	Viewing Angle	Lens Type	CCT (K)	Current - Max [Max]	Type	Voltage - Forward (Vf) (Typ)	Current - Test	Configuration	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Size / Dimension [diameter]
BRIDGELUX BXRC-65E2001-C-74	85 °C	1.9 mm	Cool White	With Connector	3383 lm	120 °	Flat	6500 K	1.26 A	Chip On Board (COB)	34.1 V	630 mA	Round	157 lm/W	80	13.2 mm	36.2 mm
BRIDGELUX BXRC-65E1001-C-73-SE	85 °C	3.6 mm	Cool White		1827 lm	120 °	Flat	6500 K	720 mA	Chip On Board (COB)	33.8 V	360 mA	Round	150 lm/W	80	9.9 mm	30.8 mm
BRIDGELUX BXRC-65E2001-C-83		1.8 mm	Cool White		3015 lm	120 °	Flat	6500 K	1.75 A	Chip On Board (COB)	33.4 V	500 mA	Round	181 lm/W	80	13.3 mm	36.2 mm
BRIDGELUX BXRC-65C4001-C-73-SE	85 °C	3.6 mm	Cool White		6449 lm	120 °	Flat	6500 K	2.34 A	Chip On Board (COB)	34.1 V		Round		70	18.4 mm	36.2 mm
BRIDGELUX BXRC-65E2001-D-74	85 °C	1.9 mm	Cool White	With Connector	2461 lm	120 °	Flat	6500 K	1 A	Chip On Board (COB)	30.9 V	500 mA	Round	159 lm/W	80	13.2 mm	36.2 mm
BRIDGELUX BXRC-65E10K1-B-73-SE		3.6 mm	Cool White		16099 lm	120 °	Flat	6500 K	3.6 A	Chip On Board (COB)	52 V	1.8 A	Round		80	29.2 mm	49.2 mm
BRIDGELUX BXRC-65E2001-D-73-SE	85 °C	3.6 mm	Cool White		2418 lm	120 °	Flat	6500 K	1 A	Chip On Board (COB)	30.9 V	500 mA	Round	156 lm/W	80	13.4 mm	36.2 mm
BRIDGELUX BXRC-65E10K1-D-73		1.9 mm	Cool White		13581 lm	120 °	Flat	6500 K	4.2 A	Chip On Board (COB)	37.6 V	2.1 A	Round		80	29.2 mm	49.2 mm
BRIDGELUX BXRC-65E2001-C-73	85 °C	1.9 mm	Cool White		3383 lm	120 °	Flat	6500 K	1.26 A	Chip On Board (COB)	33.9 V	630 mA	Round	158 lm/W	80	13.2 mm	36.2 mm
BRIDGELUX BXRC-65E2001-B-73	85 °C	1.9 mm	Cool White		2417 lm	120 °	Flat	6500 K	900 mA	Chip On Board (COB)	33.9 V	450 mA	Round	158 lm/W	80	13.2 mm	36.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.85
		10	$ 5.69
		80	$ 5.28

Description

General part information

BXRC-65 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 Vero® 13 Array White, Cool Round

Documents

Technical documentation and resources
