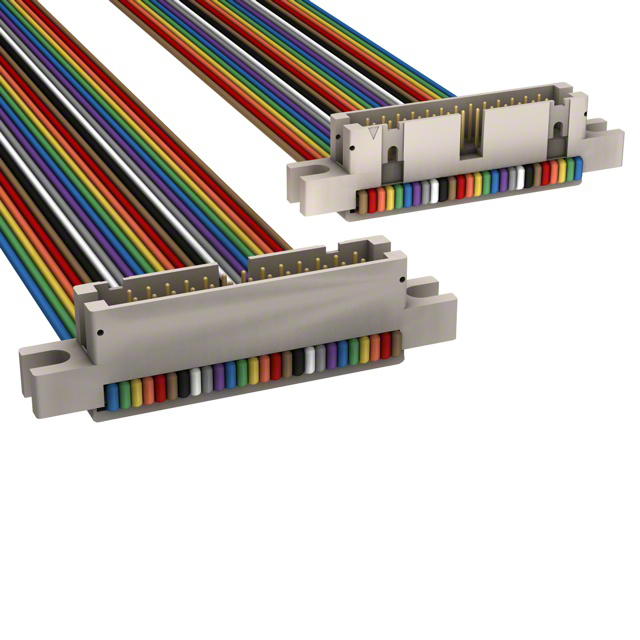

M3YYK-2606R

Active

3M (TC)

IDC CABLE - MPD26K/MC26M/MPD26K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

M3YYK-2606R

Active

3M (TC)

IDC CABLE - MPD26K/MC26M/MPD26K

Deep-Dive with AI

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3YYK-2606R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Plug to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief, Flange
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	26
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3YYK Series

Part	Contact Finish	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Shielding	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Color	Pitch - Cable	Pitch - Cable	Cable Termination	Number of Positions	Length	Length	Length	Number of Positions	Length
3M (TC) M3YYK-3018R	Gold	457.2 mm	1.5 ft	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key Strain Relief	Plug to Plug	0.76 Ám	30 Áin	2	Multiple Ribbon	0.05 "	1.27 mm	IDC	30
3M (TC) M3YYK-3406R	Gold			0.1 in	2.54 mm	Unshielded	Flange Polarizing Key Strain Relief	Plug to Plug	0.76 Ám	30 Áin	2	Multiple Ribbon	0.05 "	1.27 mm	IDC	34	152.4 mm	6 "	0.5 '
3M (TC) M3YYK-2606R	Gold			0.1 in	2.54 mm	Unshielded	Flange Polarizing Key Strain Relief	Plug to Plug	0.76 Ám	30 Áin	2	Multiple Ribbon	0.05 "	1.27 mm	IDC	26	152.4 mm	6 "	0.5 '
3M (TC) M3YYK-6436R	Gold	914.4 mm	3 ft	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key Strain Relief	Plug to Plug	0.76 Ám	30 Áin	2	Multiple Ribbon	0.05 "	1.27 mm	IDC	64
3M (TC) M3YYK-3006R	Gold			0.1 in	2.54 mm	Unshielded	Flange Polarizing Key Strain Relief	Plug to Plug	0.76 Ám	30 Áin	2	Multiple Ribbon	0.05 "	1.27 mm	IDC	30	152.4 mm	6 "	0.5 '
3M (TC) M3YYK-1036J	Gold	914.4 mm	3 ft	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key Strain Relief	Plug to Plug	0.76 Ám	30 Áin	2		0.05 "	1.27 mm	IDC	10
3M (TC) M3YYK-3440K	Gold	1.02 m	3.34 ft	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key Strain Relief	Plug to Plug	0.76 Ám	30 Áin	2	Multiple Twisted Pair (Flat)	0.05 "	1.27 mm	IDC	34
3M (TC) M3YYK-2018J	Gold	457.2 mm	1.5 ft	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key Strain Relief	Plug to Plug	0.76 Ám	30 Áin	2		0.05 "	1.27 mm	IDC	20
3M (TC) M3YYK-1620K	Gold			0.1 in	2.54 mm	Unshielded	Flange Polarizing Key Strain Relief	Plug to Plug	0.76 Ám	30 Áin	2	Multiple Twisted Pair (Flat)	0.05 "	1.27 mm	IDC		508 mm			16	1.67 ft
3M (TC) M3YYK-2640K	Gold	1.02 m	3.34 ft	0.1 in	2.54 mm	Unshielded	Flange Polarizing Key Strain Relief	Plug to Plug	0.76 Ám	30 Áin	2	Multiple Twisted Pair (Flat)	0.05 "	1.27 mm	IDC	26

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.63
		10	$ 24.42
		25	$ 22.13
		50	$ 20.59
		100	$ 19.18
		250	$ 17.53
		500	$ 16.42

Description

General part information

M3YYK Series

26 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

3302 Series

Datasheet
