RKZE-0515D/HP

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W 05VIN +/-15VOUT +/-66MA DUAL SIP7

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +2

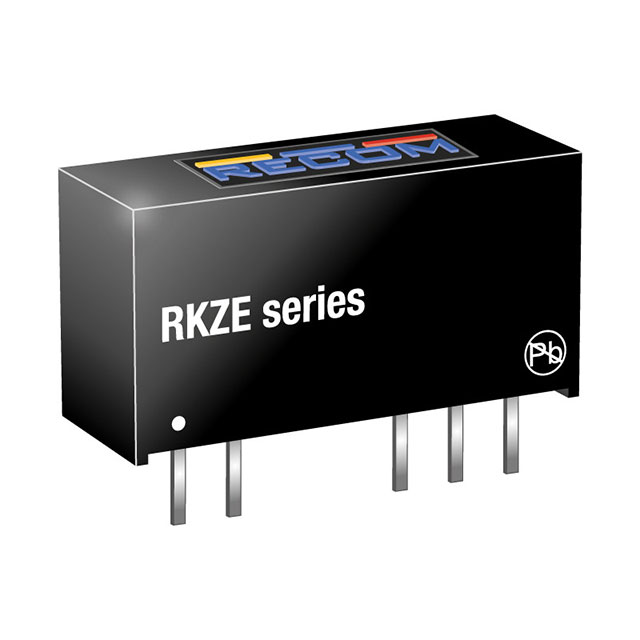

RKZE-0515D/HP

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W 05VIN +/-15VOUT +/-66MA DUAL SIP7

Deep-Dive with AI

DocumentsDatasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RKZE-0515D/HP

Applications	ITE (Commercial)
Current - Output (Max)	66 mA
Efficiency	86 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 5 Leads
Power (Watts)	2 W
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.7 mm
Size / Dimension [y]	0.28 in
Size / Dimension [y]	7.1 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	4000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

RKZE-1205 Series

Isolated DC/DC Converters - Through Hole 2W 24Vin +/-15Vout +/-66mA Dual SIP7

Part	Mounting Type	Voltage - Output 1	Voltage - Output 2	Voltage - Input (Min) [Min]	Current - Output (Max)	Number of Outputs	Package / Case	Voltage - Input (Max) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Features	Voltage - Isolation	Applications	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
RECOM Power RKZE-0515D/HP	Through Hole	15 V	-15 V	4.5 V	66 mA	2	7-SIP Module 5 Leads	5.5 V	Isolated Module	-40 °C	80 C	2 W	86 %	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	SCP	4000 V	ITE (Commercial)
RECOM Power RKZE-0515D/P	Through Hole	15 V	-15 V	4.5 V	66 mA	2	7-SIP Module 5 Leads	5.5 V	Isolated Module	-40 °C	80 C	2 W	86 %	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	SCP	3000 V	ITE (Commercial)
RECOM Power RKZE-1205S/P	Through Hole	5 V		10.8 V		1	7-SIP Module 4 Leads	13.2 V	Isolated Module	-40 °C	80 C	2 W	83 %	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	SCP	3000 V	ITE (Commercial)	400 mA
RECOM Power RKZE-1505S/H	Through Hole	5 V		13.5 V		1	7-SIP Module 4 Leads	16.5 V	Isolated Module	-40 °C	80 C	2 W	83 %	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm		4000 V	ITE (Commercial)	400 mA
RECOM Power RKZE-0512D/HP	Through Hole	12 V	-12 V	4.5 V		2	7-SIP Module 5 Leads	5.5 V	Isolated Module	-40 °C	80 C	2 W	85 %	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	SCP	4000 V	ITE (Commercial)		84 mA	84 mA
RECOM Power RKZE-0509S	Through Hole	9 V		4.5 V		1	7-SIP Module 4 Leads	5.5 V	Isolated Module	-40 °C	80 C	2 W	85 %	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm		3000 V	ITE (Commercial)	222 mA
RECOM Power RKZE-1212D/H	Through Hole	12 V	-12 V	10.8 V		2	7-SIP Module 5 Leads	13.2 V	Isolated Module	-40 °C	80 C	2 W	85 %	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm		4000 V	ITE (Commercial)		84 mA	84 mA
RECOM Power RKZE-1205D/P	Through Hole	5 V	-5 V	10.8 V		2	7-SIP Module 5 Leads	13.2 V	Isolated Module	-40 °C	80 C	2 W	85 %	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	SCP	3000 V	ITE (Commercial)
RECOM Power RKZE-2405D/P	Through Hole	5 V	-5 V	21.6 V		2	7-SIP Module 5 Leads	26.4 V	Isolated Module	-40 °C	80 C	2 W	85 %	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm	SCP	3000 V	ITE (Commercial)
RECOM Power RKZE-1212S	Through Hole	12 V		10.8 V		1	7-SIP Module 4 Leads	13.2 V	Isolated Module	-40 °C	80 C	2 W	88 %	0.28 in	0.77 in	7.1 mm	0.4 "	10.2 mm	19.7 mm		3000 V	ITE (Commercial)	167 mA
