PQAE50-D24-S15-DH

CUI Inc.

DC-DC ISOLATED, 50 W, 18~36 VDC

Deep-Dive with AI

Search across all available documentation for this part.

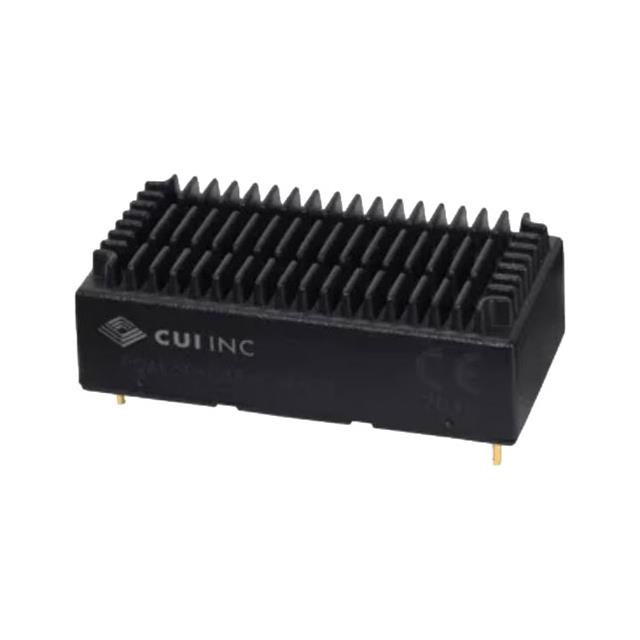

PQAE50-D24-S15-DH

CUI Inc.

DC-DC ISOLATED, 50 W, 18~36 VDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PQAE50-D24-S15-DH

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	3.333 A
Efficiency	91 %
Features	Heat Sink, Adjustable Output, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	50 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	16.5 mm
Size / Dimension [z]	0.65 in
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

PQAE50 Series

Part	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Number of Outputs	Package / Case	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Approval Agency	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Efficiency	Voltage - Input (Min) [Min]	Applications	Power (Watts)	DC Voltage - Input (Min) [Min]	Input Type	DC Voltage - Input (Max) [Max]
CUI Inc. PQAE50-D24-S15-DH	15 V	-40 °C	105 C	62368-1	1	6-DIP Module	3.333 A	Through Hole	36 V	1.5 kV	CE	Isolated Module	50.8 mm	25.4 mm	16.5 mm	2 in	0.65 in	25.4 mm	Adjustable Output Heat Sink Remote On/Off	91 %	18 V	ITE (Commercial)	50 W
CUI Inc. PQAE50-D24-S15-TH	15 V	-40 °C	105 C	62368-1	1		3.333 A	Chassis Mount	36 V	1.5 kV	CE	Enclosed	76 mm	31.5 mm	25.3 mm	2.99 in	1 "	1.24 in		91 %	18 V	ITE (Commercial)	50 W
CUI Inc. PQAE50-D48-S15-TH	15 V	-40 °C	105 C	62368-1	1		3.333 A	Chassis Mount	75 V	1.5 kV	CE	Enclosed	76 mm	31.5 mm	25.3 mm	2.99 in	1 "	1.24 in		92 %	36 V	ITE (Commercial)	50 W
CUI Inc. PQAE50-D24-S15-DIN	15 V	-40 °C	105 C	62368-1	1		3.333 A			1.5 kV	CE		76 mm	31.5 mm	25.8 mm	2.99 in	1.02 in	1.24 in	Adjustable Output Remote On/Off	91 %		ITE (Commercial)	50 W	18 V	DC	36 V
CUI Inc. PQAE50-D24-S24-DINH	24 V	-40 °C	105 C	62368-1	1		2.083 A			1.5 kV	CE		76 mm	31.5 mm	29.9 mm	2.99 in	1.18 in	1.24 in	Adjustable Output Heat Sink Remote On/Off	91 %		ITE (Commercial)	50 W	18 V	DC	36 V
CUI Inc. PQAE50-D24-S3-DINH	3.3 V	-40 °C	105 C	62368-1	1		10 A			1.5 kV	CE		76 mm	31.5 mm	29.9 mm	2.99 in	1.18 in	1.24 in	Adjustable Output Heat Sink Remote On/Off	91 %		ITE (Commercial)	33 W	18 V	DC	36 V
CUI Inc. PQAE50-D24-S5-TH	5 V	-40 °C	105 C	62368-1	1		10 A	Chassis Mount	36 V	1.5 kV	CE	Enclosed	76 mm	31.5 mm	25.3 mm	2.99 in	1 "	1.24 in		91 %	18 V	ITE (Commercial)	50 W
CUI Inc. PQAE50-D48-S3-DIN	3.3 V	-40 °C	105 C	62368-1	1		10 A			1.5 kV	CE		76 mm	31.5 mm	25.8 mm	2.99 in	1.02 in	1.24 in	Adjustable Output Remote On/Off	91 %		ITE (Commercial)	33 W	36 V	DC	75 V
CUI Inc. PQAE50-D24-S15-D	15 V	-40 °C	105 C	62368-1	1	6-DIP Module	3.333 A	Through Hole	36 V	1.5 kV	CE	Isolated Module	50.8 mm	25.4 mm	11.8 mm	2 in	0.46 in	25.4 mm	Adjustable Output Remote On/Off	91 %	18 V	ITE (Commercial)	50 W
CUI Inc. PQAE50-D48-S12-DINH	12 V	-40 °C	105 C	62368-1	1		4.167 A			1.5 kV	CE		76 mm	31.5 mm	29.9 mm	2.99 in	1.18 in	1.24 in	Adjustable Output Heat Sink Remote On/Off	92 %		ITE (Commercial)	50 W	36 V	DC	75 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	76	$ 34.07

Description

General part information

PQAE50 Series

Isolated Module DC DC Converter 1 Output 15V 3.333A 18V - 36V Input
