306-039-521-108
ActiveEDAC Inc.

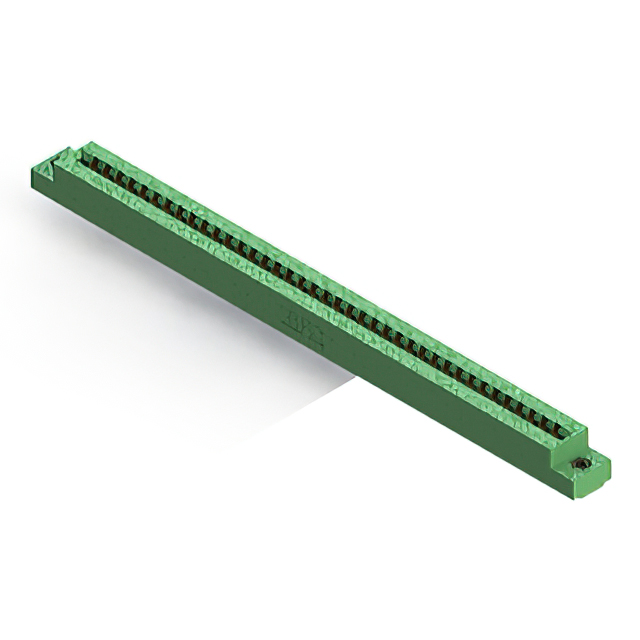

CONN EDGE DUAL FMALE 78POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
306-039-521-108
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-039-521-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 78 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
306-039 Series
| Part | Termination | Mounting Type | Contact Finish | Number of Positions | Termination Rows | Contact Material | Color | Flange Feature | Number of Rows | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Read Out | Number of Positions/Bay/Row [custom] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Panel Mount Through Hole | Gold | 78 | 1 | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Cantilever | Dual | 39 | Non Specified - Dual Edge | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | |||
EDAC Inc. | Solder | Panel Mount Through Hole | Tin | 78 | 1 | Copper Alloy | Green | Flush Mount Side Opening Unthreaded | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Dual | 39 | Non Specified - Dual Edge | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 3.25 mm | 0.128 " | |||
EDAC Inc. | Solder | Through Hole | Tin | 78 | 1 | Copper Alloy | Green | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Dual | 39 | Non Specified - Dual Edge | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | ||||||
EDAC Inc. | Solder | Panel Mount Through Hole | Tin | 78 | 1 | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Dual | 39 | Non Specified - Dual Edge | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | Card Guides | ||||
EDAC Inc. | Solder | Panel Mount Through Hole | Tin | 78 | 1 | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Dual | 39 | Non Specified - Dual Edge | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 3.25 mm | 0.128 " | |||
EDAC Inc. | Solder Eyelet(s) | Gold | 78 | 1 | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Cantilever | Dual | 39 | Non Specified - Dual Edge | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | Card Guides | |||
EDAC Inc. | Solder | Panel Mount Through Hole | Tin | 78 | 1 | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Dual | 39 | Non Specified - Dual Edge | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | 3.96 mm | 0.156 in | |||
EDAC Inc. | Solder | Panel Mount Through Hole | Gold | 78 | 1 | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Cantilever | Dual | 39 | Non Specified - Dual Edge | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | Card Guides | ||
EDAC Inc. | Solder | Panel Mount Through Hole | Tin | 78 | 1 | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Dual | 39 | Non Specified - Dual Edge | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | |||||
EDAC Inc. | Solder | Panel Mount Through Hole | Tin | 78 | 1 | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Dual | 39 | Non Specified - Dual Edge | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Female | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 23.06 | |
Description
General part information
306-039 Series
78 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
