410-83-224-10-002101

Active

PRECI-DIP SA

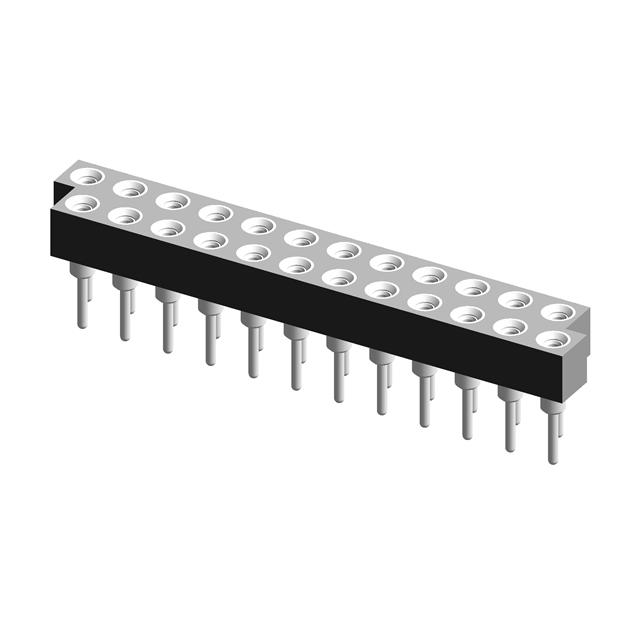

CONN ZIG-ZAG 24POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

410-83-224-10-002101

Active

PRECI-DIP SA

CONN ZIG-ZAG 24POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	410-83-224-10-002101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	24
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	Zig-Zag, Right Stackable

410-83 Series

Part	Mounting Type	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Number of Positions Loaded	Termination	Contact Type	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Number of Positions	Fastening Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Mating	Connector Type	Contact Material - Post [custom]	Contact Material - Mating	Pitch - Post	Pitch - Post	Housing Material	Contact Resistance	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid)	Type
PRECI-DIP SA 410-83-228-41-001101	Through Hole	Circular	3.18 mm	0.125 in	Black	All	Solder	Female Socket	0.165 in	4.2 mm	3 A	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	2.54 mm	0.1 in	29.5 Áin	0.75 Ám	2	28	Push-Pull	UL94 V-0	-55 °C	125 °C	Beryllium Copper	Gold	Socket
PRECI-DIP SA 410-83-220-41-001101	Through Hole	Circular	3.18 mm	0.125 in	Black	All	Solder	Female Socket	0.165 in	4.2 mm	3 A	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	2.54 mm	0.1 in	29.5 Áin	0.75 Ám	2	20	Push-Pull	UL94 V-0	-55 °C	125 °C	Beryllium Copper	Gold	Socket
PRECI-DIP SA 410-83-248-41-001101	Through Hole	Circular	3.18 mm	0.125 in	Black	All	Solder	Female Socket	0.165 in	4.2 mm	3 A	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	2.54 mm	0.1 in	29.5 Áin	0.75 Ám	2	48	Push-Pull	UL94 V-0	-55 °C	125 °C	Beryllium Copper	Gold	Socket
PRECI-DIP SA 410-83-230-41-001101	Through Hole	Circular	3.18 mm	0.125 in	Black	All	Solder	Female Socket	0.165 in	4.2 mm	3 A	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	2.54 mm	0.1 in	29.5 Áin	0.75 Ám	2	30	Push-Pull	UL94 V-0	-55 °C	125 °C	Beryllium Copper	Gold	Socket
PRECI-DIP SA 410-83-224-10-002101	Through Hole						Solder				1 A	0.1 in	2.54 mm		Tin			29.5 Áin	0.75 Ám				UL94 V-0	-55 °C	125 °C		Gold		Brass	Beryllium Copper	2.54 mm	0.1 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm	3.18 mm	0.125 in	24	Right Stackable Zig-Zag
PRECI-DIP SA 410-83-342-01-640101	Through Hole	Circular	3.18 mm	0.125 in	Black	All	Solder	Female Socket	0.165 in	4.2 mm	3 A	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	2.54 mm	0.1 in	29.5 Áin	0.75 Ám	3	42	Push-Pull	UL94 V-0	-55 °C	125 °C	Beryllium Copper	Gold	Socket
PRECI-DIP SA 410-83-345-01-640101	Through Hole	Circular	3.18 mm	0.125 in	Black	All	Solder	Female Socket	0.165 in	4.2 mm	3 A	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	2.54 mm	0.1 in	29.5 Áin	0.75 Ám	3	45	Push-Pull	UL94 V-0	-55 °C	125 °C	Beryllium Copper	Gold	Socket
PRECI-DIP SA 410-83-242-01-640101	Through Hole	Circular	3.18 mm	0.125 in	Black	All	Solder	Female Socket	0.165 in	4.2 mm	3 A	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	2.54 mm	0.1 in	29.5 Áin	0.75 Ám	2	42	Push-Pull	UL94 V-0	-55 °C	125 °C	Beryllium Copper	Gold	Socket
PRECI-DIP SA 410-83-214-41-001101	Through Hole	Circular	3.18 mm	0.125 in	Black	All	Solder	Female Socket	0.165 in	4.2 mm	3 A	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	2.54 mm	0.1 in	29.5 Áin	0.75 Ám	2	14	Push-Pull	UL94 V-0	-55 °C	125 °C	Beryllium Copper	Gold	Socket
PRECI-DIP SA 410-83-357-01-640101	Through Hole	Circular	3.18 mm	0.125 in	Black	All	Solder	Female Socket	0.165 in	4.2 mm	3 A	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	2.54 mm	0.1 in	29.5 Áin	0.75 Ám	3	57	Push-Pull	UL94 V-0	-55 °C	125 °C	Beryllium Copper	Gold	Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	700	$ 1.89

Description

General part information

410-83 Series

24 (2 x 12) Pos Zig-Zag, Right Stackable Socket Gold Through Hole
