DS1742-85+

Obsolete

Analog Devices Inc./Maxim Integrated

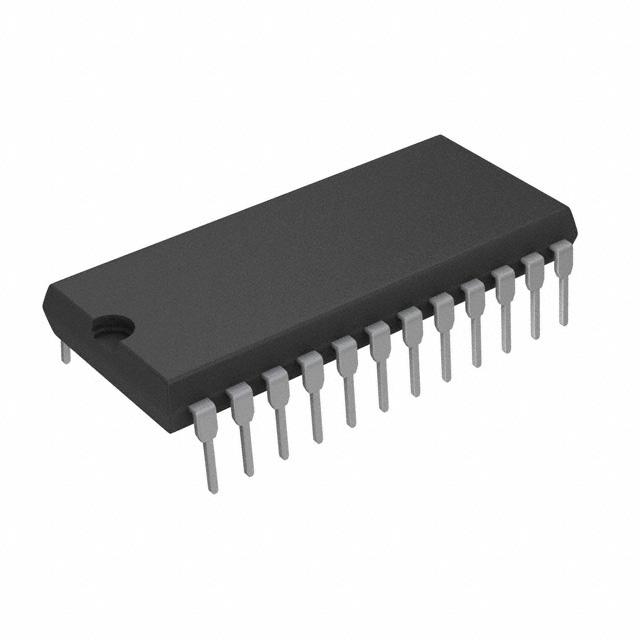

IC RTC CLK/CALENDAR PAR 24-EDIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DS1742-85+

Obsolete

Analog Devices Inc./Maxim Integrated

IC RTC CLK/CALENDAR PAR 24-EDIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS1742-85+

null

DS1742 Series

Part	Features	Interface	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Time Format	Mounting Type	Package / Case	Package / Case	Package / Case	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Timekeeping (Max)
Analog Devices Inc./Maxim Integrated DS1742-85+
Analog Devices Inc./Maxim Integrated DS1742-100	Leap Year NVSRAM Y2K	Parallel	24-EDIP	4.5 V	5.5 V	HH:MM:SS (24 hr)	Through Hole	0.6 in	24-DIP Module	15.24 mm	16 Kbit	70 °C	0 °C	Clock/Calendar	3 mA
Analog Devices Inc./Maxim Integrated DS1742W-150+	Leap Year NVSRAM Y2K	Parallel	24-EDIP	2.97 V	3.63 V	HH:MM:SS (24 hr)	Through Hole	0.6 in	24-DIP Module	15.24 mm	16 Kbit	70 °C	0 °C	Clock/Calendar	2 mA
Analog Devices Inc./Maxim Integrated DS1742-70+	Leap Year NVSRAM Y2K	Parallel	24-EDIP	4.5 V	5.5 V	HH:MM:SS (24 hr)	Through Hole	0.6 in	24-DIP Module	15.24 mm	16 Kbit	70 °C	0 °C	Clock/Calendar	3 mA
Analog Devices Inc./Maxim Integrated DS1742-100IND+	Leap Year NVSRAM Y2K	Parallel	24-EDIP	4.5 V	5.5 V	HH:MM:SS (24 hr)	Through Hole	0.6 in	24-DIP Module	15.24 mm	16 Kbit	85 °C	-40 °C	Clock/Calendar	3 mA
Analog Devices Inc./Maxim Integrated DS1742W-120+	Leap Year NVSRAM Y2K	Parallel	24-EDIP	2.97 V	3.63 V	HH:MM:SS (24 hr)	Through Hole	0.6 in	24-DIP Module	15.24 mm	16 Kbit	70 °C	0 °C	Clock/Calendar	2 mA
Analog Devices Inc./Maxim Integrated DS1742W-150	Leap Year NVSRAM Y2K	Parallel	24-EDIP	2.97 V	3.63 V	HH:MM:SS (24 hr)	Through Hole	0.6 in	24-DIP Module	15.24 mm	16 Kbit	70 °C	0 °C	Clock/Calendar	2 mA
Analog Devices Inc./Maxim Integrated DS1742-70	Leap Year NVSRAM Y2K	Parallel	24-EDIP	4.5 V	5.5 V	HH:MM:SS (24 hr)	Through Hole	0.6 in	24-DIP Module	15.24 mm	16 Kbit	70 °C	0 °C	Clock/Calendar	3 mA
Analog Devices Inc./Maxim Integrated DS1742-100+	Leap Year NVSRAM Y2K	Parallel	24-EDIP	4.5 V	5.5 V	HH:MM:SS (24 hr)	Through Hole	0.6 in	24-DIP Module	15.24 mm	16 Kbit	70 °C	0 °C	Clock/Calendar	3 mA
Analog Devices Inc./Maxim Integrated DS1742-100IND	Leap Year NVSRAM Y2K	Parallel	24-EDIP	4.5 V	5.5 V	HH:MM:SS (24 hr)	Through Hole	0.6 in	24-DIP Module	15.24 mm	16 Kbit	85 °C	-40 °C	Clock/Calendar	3 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	18	$ 17.28

Description

General part information

DS1742 Series

Real Time Clock (RTC) IC
