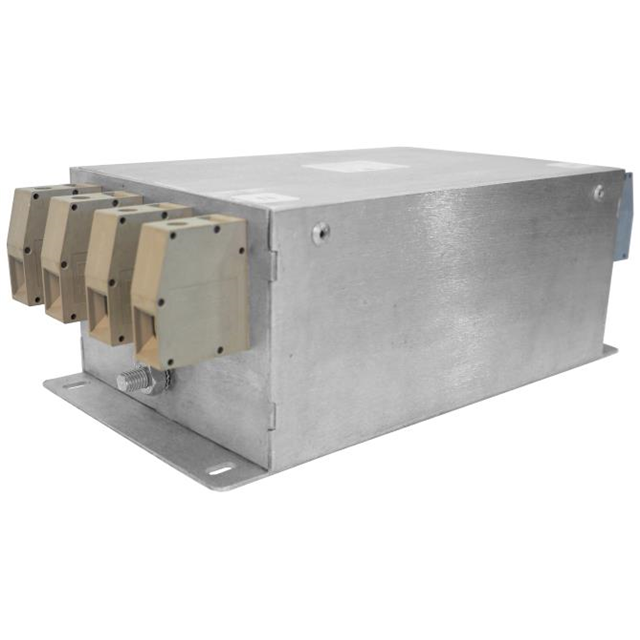

RP400-36-0-C

Active

Astrodyne TDI

LINE FILTER 480VAC 36A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP400-36-0-C

Active

Astrodyne TDI

LINE FILTER 480VAC 36A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP400-36-0-C

Applications	General Purpose
Approval Agency	SEMKO, cURus, ENEC, CE
Configuration	Single Stage
Current	36 A
Filter Type	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	3.5 kV

RP400 Series

...

Part	Configuration	Voltage - Rated AC	Mounting Type	Approval Agency	Termination Style	Filter Type	Applications	Operating Temperature [custom]	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC (Phase to Ground/Neutral)
Astrodyne TDI RP400-65-100-S	Single Stage	480 V	Chassis Mount	CE cURus ENEC SEMKO	Threaded Post (M6)	Three Phase (Wye)	General Purpose	-25 °C 100 °C	65 A	60 Hz	50 Hz	3.5 kV
Astrodyne TDI RP400-150-1000-S	Single Stage	480 V	Chassis Mount	CE cURus ENEC SEMKO	Threaded Post (M10)	Three Phase (Wye)	General Purpose	-25 °C 100 °C	150 A	60 Hz	50 Hz	3.5 kV
Astrodyne TDI RP400-150-2000-S	Single Stage	480 V	Chassis Mount	CE cURus ENEC SEMKO	Threaded Post (M10)	Three Phase (Wye)	General Purpose	-25 °C 100 °C	150 A	60 Hz	50 Hz	3.5 kV
Astrodyne TDI RP400-45-0-S	Single Stage	480 V	Chassis Mount	CE cURus ENEC SEMKO	Threaded Post (M5)	Three Phase (Wye)	General Purpose	-25 °C 100 °C	45 A	60 Hz	50 Hz	3.5 kV
Astrodyne TDI RP400-100-1000-W	Single Stage	480 V	Chassis Mount	CE cURus ENEC SEMKO	Wire Leads	Three Phase (Wye)	General Purpose	-25 °C 100 °C	100 A	60 Hz	50 Hz	3.5 kV
Astrodyne TDI RP400-30-0-C	Single Stage	480 V	Chassis Mount	CE cURus ENEC SEMKO	Terminal Block	Three Phase (Wye)	General Purpose	-25 °C 100 °C	30 A	60 Hz	50 Hz	3.5 kV
Astrodyne TDI RP400-100-10-C	Single Stage	480 V	Chassis Mount	CE cURus ENEC SEMKO	Terminal Block	Three Phase (Wye)	General Purpose	-25 °C 100 °C	100 A	60 Hz	50 Hz	3.5 kV
Astrodyne TDI RP400-150-0-S	Single Stage	480 V	Chassis Mount	CE cURus ENEC SEMKO	Threaded Post (M10)	Three Phase (Wye)	General Purpose	-25 °C 100 °C	150 A	60 Hz	50 Hz	3.5 kV
Astrodyne TDI RP400-36-0-C	Single Stage	480 V	Chassis Mount	CE cURus ENEC SEMKO	Terminal Block	Three Phase (Wye)	General Purpose	-25 °C 100 °C	36 A	60 Hz	50 Hz	3.5 kV
Astrodyne TDI RP400-40-1000-W	Single Stage	480 V	Chassis Mount	CE cURus ENEC SEMKO	Wire Leads	Three Phase (Wye)	General Purpose	-25 °C 100 °C	40 A	60 Hz	50 Hz	3.5 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 261.87

Description

General part information

RP400 Series

Three Phase (Wye) EMC/EMI Line Filter 36 A 480V 50/60Hz Single Stage Terminal Block

Documents

Technical documentation and resources
