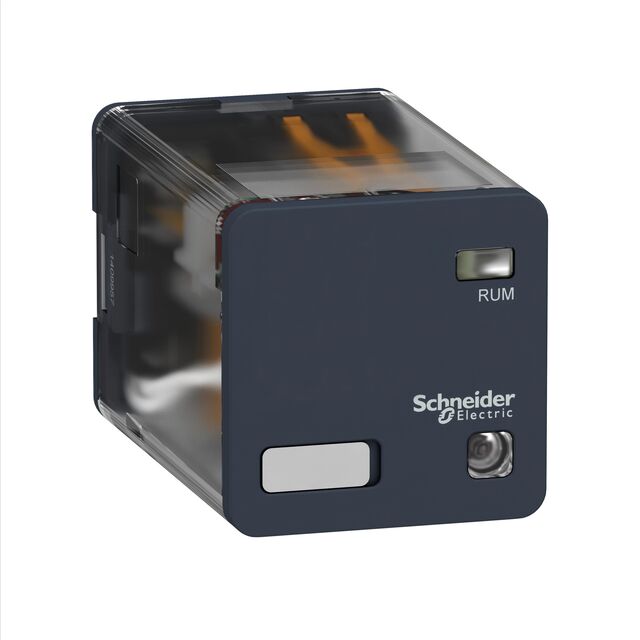

RUMC23P7

Active

SQUARE D BY SCHNEIDER ELECTRIC

RLY 2CO CYL PIN 10A@250V 120VAC

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

RLY 2CO CYL PIN 10A@250V 120VAC

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Operate Time	Must Operate Voltage	Must Release Voltage	Contact Rating (Current)	Relay Type	Load - Max Switching	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Coil Type	Features	Switching Voltage	Contact Form	Coil Resistance	Coil Voltage	Release Time	Termination Style	Mounting Type
SQUARE D BY SCHNEIDER ELECTRIC RUMC23P7	Silver Nickel (AgNi)	20 ms	184 VAC	34.5 VAC	10 A	General Purpose	280 W 2500 VA	33.8 mA	-40 °C	55 °C	CSA EAC UL	Non Latching	Lighted Indicator	28 VDC 250 VAC	DPDT (2 Form C)	6.8 kOhms	230 VAC	20 ms	Plug In	Socketable
SQUARE D BY SCHNEIDER ELECTRIC RUMC23F7	Silver Nickel (AgNi)	20 ms	96 VAC	18 VAC	10 A	General Purpose	280 W 2500 VA	70.6 mA	-40 °C	55 °C	CSA EAC UL	Non Latching	Lighted Indicator	28 VDC 250 VAC	DPDT (2 Form C)	1.7 kOhms	120 VAC	20 ms	Plug In	Socketable
SQUARE D BY SCHNEIDER ELECTRIC RUMC23BD	Silver Nickel (AgNi)	20 ms	19.2 VDC	2.4 VDC	10 A	General Purpose	280 W 2500 VA	51.1 mA	-40 °C	55 °C	CSA EAC UL	Non Latching	Lighted Indicator	28 VDC 250 VAC	DPDT (2 Form C)	470 Ohms	24 VDC	20 ms	Plug In	Socketable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 26.89

General part information

General Purpose Relay DPDT (2 Form C) 230VAC Coil Socketable
