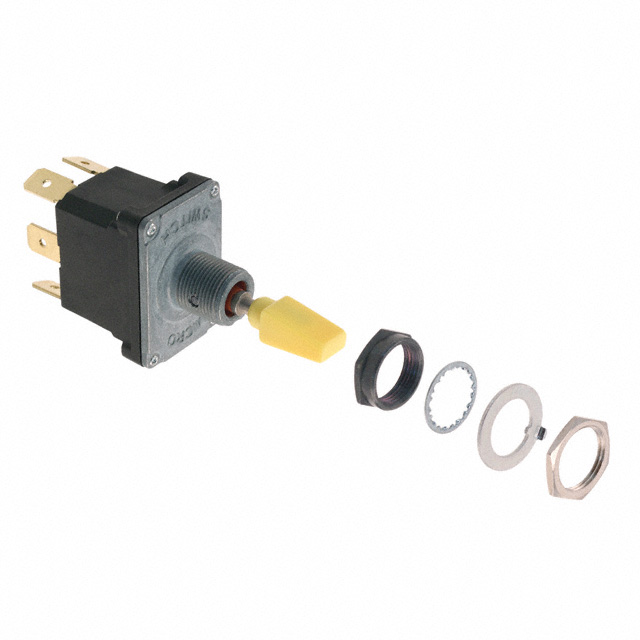

32NT391-7-C08
ActiveHoneywell Sensing and Productivity Solutions
SWITCH TOGGLE DPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
32NT391-7-C08
ActiveHoneywell Sensing and Productivity Solutions
SWITCH TOGGLE DPDT 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 32NT391-7-C08 |
|---|---|
| Actuator Length [x] | 22.35 mm |
| Actuator Type | Flatted |
| Bushing Thread | 15/32-32 |
| Circuit | DPDT |
| Current Rating (Amps) | 10 A |
| Features | Yellow Actuator |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 12.4 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 45.48 | |
Description
General part information
32NT3 Series
Toggle Switch DPDT Panel Mount
