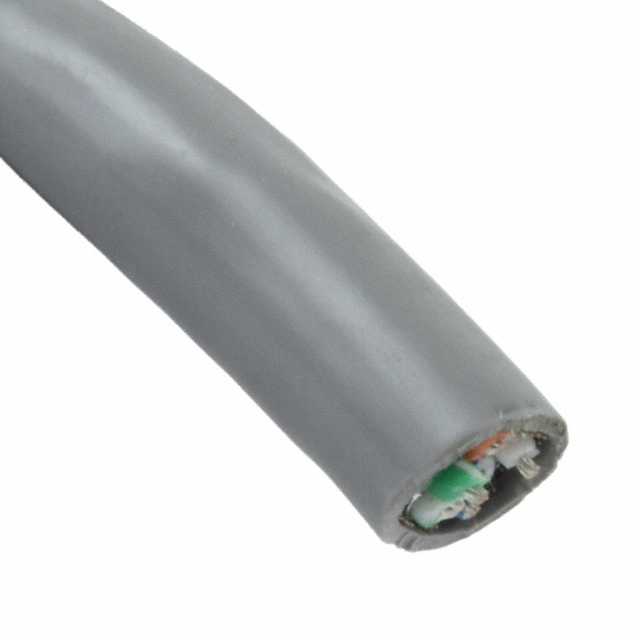

C0516A.41.10
ActivePrysmian Group
MULTI-PAIR 6COND 24AWG GRAY 500'
Deep-Dive with AI
Search across all available documentation for this part.
C0516A.41.10
ActivePrysmian Group
MULTI-PAIR 6COND 24AWG GRAY 500'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C0516A.41.10 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Low Capacitance |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 50 ft, 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2919 |
| Shield Coverage | 100 %, 65 % |
| Shield Material | Tinned, Flexfoil®, Copper |
| Shield Type | Foil, Braid |
| Usage | Computer |
| Voltage | 30 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 796.24 | |
| 1 | $ 142.25 | |||
| 5 | $ 746.48 | |||
| 5 | $ 116.39 | |||
| 10 | $ 696.71 | |||
| 10 | $ 90.53 | |||
| Spool | 1000 | $ 2.59 | ||
| 3000 | $ 2.46 | |||
Description
General part information
C0516 Series
6 (3 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil, Braid 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
