BA5984FP-E2

Obsolete

Rohm Semiconductor

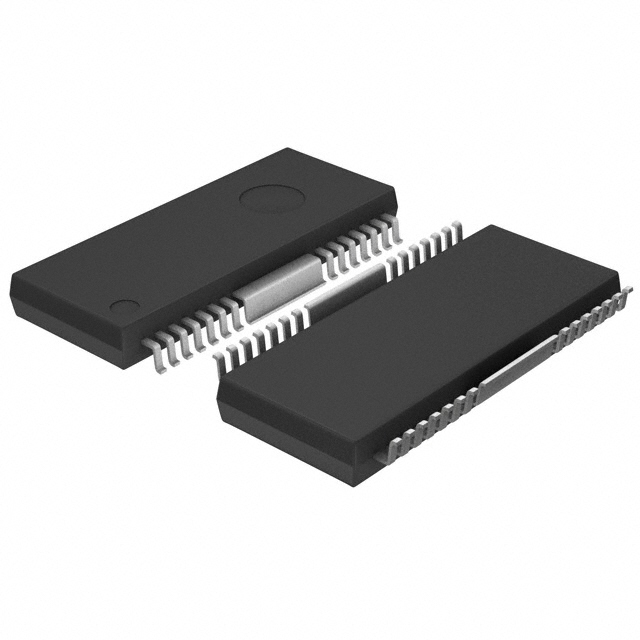

IC HALF BRIDGE DRIVER 1A 28HSOP

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

IC HALF BRIDGE DRIVER 1A 28HSOP

Technical Specifications

Parameters and characteristics for this part

Specification	BA5984FP-E2

Applications	DC Motors, General Purpose
Current - Output / Channel [custom]	1 A
Fault Protection	Over Temperature, UVLO
Interface	Logic
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (10)
Package / Case	28-SOP, 2 Heat Tabs
Package / Case	0.295 in
Package / Case [custom]	7.5 mm
Supplier Device Package	28-HSOP-M
Technology	Bipolar
Voltage - Load	6 V
Voltage - Supply [Max]	13.2 V
Voltage - Supply [Min]	4.3 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case [custom]	Package / Case	Package / Case	Voltage - Load	Load Type	Supplier Device Package	Output Configuration	Current - Output / Channel [custom]	Fault Protection	Technology	Mounting Type
Rohm Semiconductor BA5984FP-E2	85 °C	-40 °C	Logic	DC Motors General Purpose	13.2 V	4.3 V	7.5 mm	2 Heat Tabs 28-SOP	0.295 in	6 V	Inductive	28-HSOP-M	Half Bridge (10)	1 A	Over Temperature UVLO	Bipolar	Surface Mount
