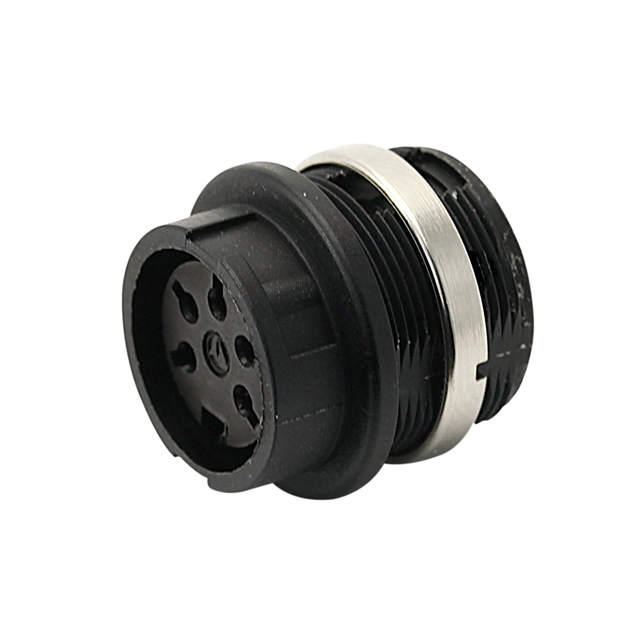

T 3427 018

Active

Amphenol Sine Systems Corp

STRAIGHT, FULL PLASTIC FRONT MOU

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

STRAIGHT, FULL PLASTIC FRONT MOU

Technical Specifications

Parameters and characteristics for this part

Specification	T 3427 018

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Plastic
Shell Size - Insert	M16-6
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Contact Finish - Mating	Mounting Feature	Shell Material	Shell Size - Insert	Applications	Insert Material	Material Flammability Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shielding	Connector Type	Fastening Type	Current Rating (Amps)	Number of Positions	Voltage Rating	Primary Material	Orientation
Amphenol Sine Systems Corp T 3427 018	Gold	Bulkhead - Rear Side Nut	Plastic	M16-6	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Thermoplastic	UL94 V-0	Black	100 °C	-40 °C	IP40	Unshielded	Receptacle Female Sockets	Bayonet Lock	7 A	6	250 VDC	Plastic	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
