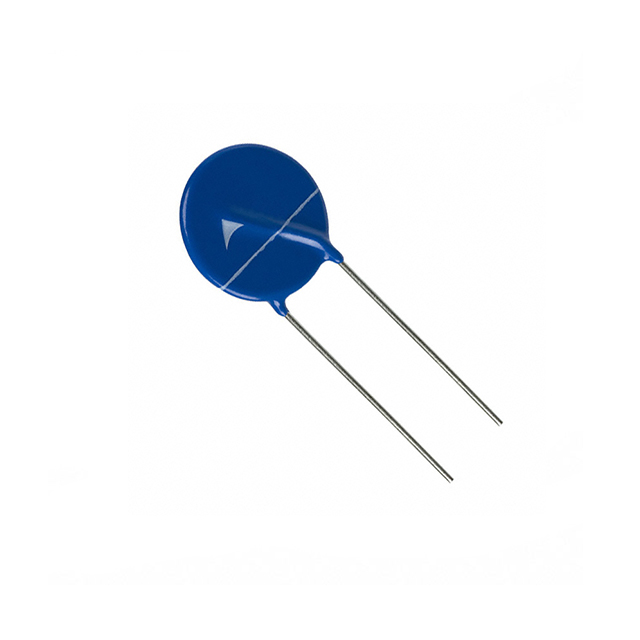

B72214S0301K502

Active

EPCOS - TDK Electronics

14MM, 300VAC, 10%, STANDARD

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

14MM, 300VAC, 10%, STANDARD

Technical Specifications

Parameters and characteristics for this part

...

Part	Maximum DC Volts [Max]	Number of Circuits	Capacitance @ Frequency	Package / Case	Package / Case	Mounting Type	Varistor Voltage (Min) [Min]	Varistor Voltage (Typ)	Current - Surge	Energy	Maximum AC Volts [Max]	Varistor Voltage (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Max)	Qualification	Grade	Maximum AC Volts
EPCOS - TDK Electronics B72214S2251K101	320 V	1	490 pF	14 mm	Disc	Through Hole	351 V	390 V	6 kA	100 J	250 V	429 V	105 °C	-40 °C
EPCOS - TDK Electronics B72214S0271K551	350 V	1	440 pF	14 mm	Disc	Through Hole	387 V	430 V	4.5 kA	71 J	275 V	473 V	105 °C	-40 °C
EPCOS - TDK Electronics B72214S0140K101	18 V	1	9950 pF	14 mm	Disc	Through Hole	19.8 V	22 V	1 kA	4 J	14 V		105 °C	-40 °C	24.2 V
EPCOS - TDK Electronics B72214S0300K151	38 V	1	4950 pF	14 mm	Disc	Through Hole	42.3 V	47 V	1 kA	9 J	30 V	51.7 V	105 °C	-40 °C
EPCOS - TDK Electronics B72214S1390K501	50 V	1		14 mm	Disc	Through Hole	58.5 V	65 V		13 J	48 V	71.5 V	125 °C	-40 °C		AEC-Q200	Automotive
EPCOS - TDK Electronics B72214S0301K502	385 V	1	400 pF	14 mm	Disc	Through Hole	423 V	470 V	4.5 kA	76 J		517 V	105 ░C	-40 °C				300 V
EPCOS - TDK Electronics B72214S0151K101	200 V	1	750 pF	14 mm	Disc	Through Hole	216 V	240 V	4.5 kA	40 J	150 V	264 V	105 °C	-40 °C
EPCOS - TDK Electronics B72214S0750K551	100 V	1	1370 pF	14 mm	Disc	Through Hole	108 V	120 V	4.5 kA	20 J	75 V		105 °C	-40 °C
EPCOS - TDK Electronics B72214S0131K551	170 V	1		14 mm	Disc	Through Hole	184.5 V	205 V	4.5 kA	34 J	130 V		105 °C	-40 °C	225.5 V
EPCOS - TDK Electronics B72214S0950K151	125 V	1	1200 pF	14 mm	Disc	Through Hole	135 V	150 V	4.5 kA	25 J	95 V	165 V	105 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 V 4.5 kA Varistor 1 Circuit Through Hole Disc 14mm
