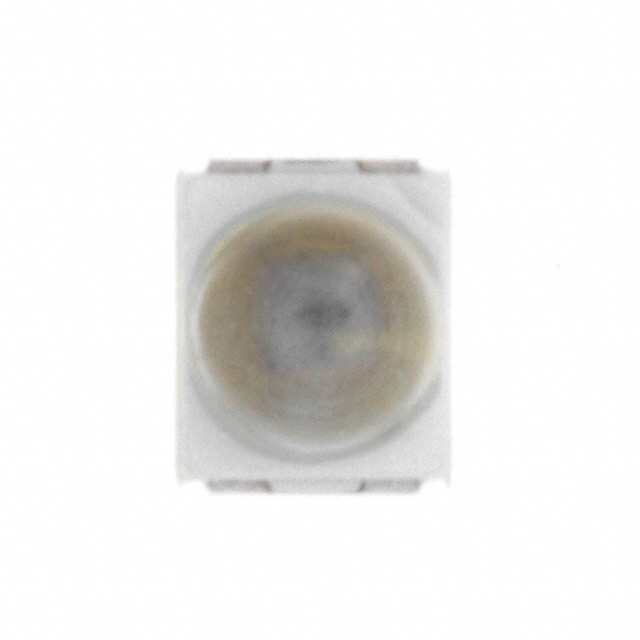

SFH 3219-Z
Activeams-OSRAM USA INC.
SENSOR PHOTO 990NM TOP VIEW PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFH 3219-Z
Activeams-OSRAM USA INC.
SENSOR PHOTO 990NM TOP VIEW PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 3219-Z |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 15 mA |
| Current - Dark (Id) (Max) [Max] | 50 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-PLCC |
| Power - Max [Max] | 165 mW |
| Viewing Angle | 50 ° |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 35 V |
| Wavelength | 990 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.77 | |
| 10 | $ 0.50 | |||
| 100 | $ 0.33 | |||
| 1000 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.77 | ||
| 10 | $ 0.50 | |||
| 100 | $ 0.33 | |||
| 1000 | $ 0.26 | |||
| Tape & Reel (TR) | 2000 | $ 0.24 | ||
| 6000 | $ 0.23 | |||
| 10000 | $ 0.23 | |||
Description
General part information
SFH 3219 Series
Phototransistors 990nm Top View 2-PLCC
Documents
Technical documentation and resources
