0191930195

Active

Molex

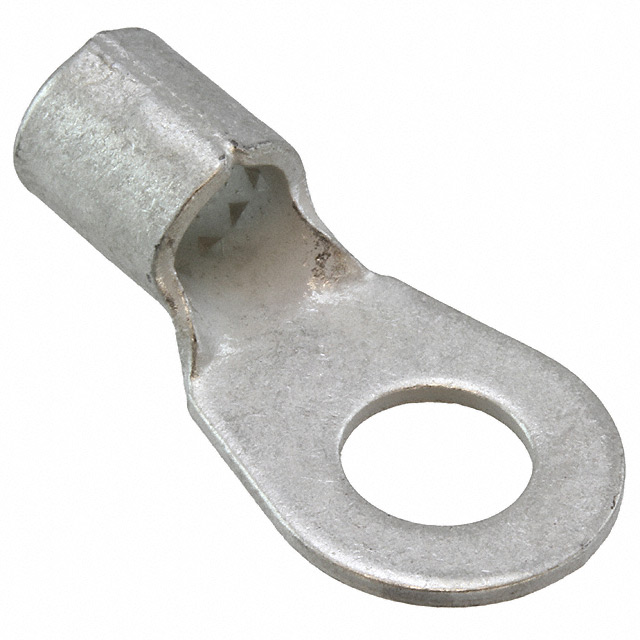

CONN RING CIRC 8AWG #5/8 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Specification

0191930195

Active

Molex

CONN RING CIRC 8AWG #5/8 CRIMP

Deep-Dive with AI

DocumentsProduct Specification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191930195

Contact Finish	Electro-Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Non-Insulated
Length - Overall [x]	49.23 mm
Length - Overall [x]	1.938 "
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.625 Stud
Terminal Type	Circular
Termination	Crimp
Width - Outer Edges [x]	28.96 mm
Width - Outer Edges [x]	1.14 in
Wire Gauge	8 AWG

019193 Series

...

Part	Contact Material	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Contact Finish	Terminal Type	Length - Overall [x]	Length - Overall [x]	Termination	Features	Stud/Tab Size	Insulation	Wire Gauge	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Length - Overall	Length - Overall	Width - Outer Edges
Molex 0191930023	Copper	Free Hanging (In-Line)	22 AWG	17.5 AWG	11.86 mm	0.467 in	0.71 mm	0.028 in	Electro-Tin	Circular	21.2 mm	0.835 in	Crimp	Brazed Seam	0.3125 Stud	Non-Insulated
Molex 0191930122	Copper	Free Hanging (In-Line)	12 AWG	10 AWG	13.72 mm	0.54 in	1.02 mm	0.04 in	Electro-Tin	Circular	24.18 mm	0.952 in	Crimp	Brazed Seam	0.3125 Stud	Non-Insulated
Molex 0191930959	Copper	Free Hanging (In-Line)							Electro-Tin	Circular		0.93 in	Crimp	Brazed Seam		Non-Insulated	8 AWG	0.379 in	9.63 mm	8 Stud	23.62 mm
Molex 0191930097	Copper	Free Hanging (In-Line)	12 AWG	10 AWG	19.3 mm	0.76 in	1.02 mm	0.04 in	Electro-Tin	Circular	32.51 mm	1.28 in	Crimp	Brazed Seam		Non-Insulated				3/8 Stud
Molex 0191930845	Copper	Free Hanging (In-Line)	12 AWG	10 AWG	13.72 mm	0.54 in	1.02 mm	0.04 in	Electro-Tin	Circular	24.18 mm	0.952 in	Crimp	Brazed Seam	0.25 Stud	Non-Insulated
Molex 0191930174	Copper	Free Hanging (In-Line)			15.19 mm	0.598 in			Electro-Tin	Circular	27.99 mm	1.102 in	Crimp	Brazed Seam	0.3125 Stud	Non-Insulated	8 AWG
Molex 0191930879	Copper	Free Hanging (In-Line)			16.56 mm	0.652 "	1.91 mm	0.075 in	Electro-Tin	Circular	35.18 mm	1.385 in	Crimp	Brazed Seam	0.25 Stud	Non-Insulated	4 AWG
Molex 0191930297	Copper	Free Hanging (In-Line)				0.879 in			Tin	Circular			Crimp	Brazed Seam	0.25 Stud	Non-Insulated	2 AWG				43.18 mm	1.7 in	22.33 mm
Molex 0191930195	Copper	Free Hanging (In-Line)							Electro-Tin	Circular	49.23 mm	1.938 "	Crimp	Brazed Seam	0.625 Stud	Non-Insulated	8 AWG	1.14 in	28.96 mm
Molex 0191930881	Copper	Free Hanging (In-Line)			16.56 mm	0.652 "	1.91 mm	0.075 in	Electro-Tin	Circular	35.18 mm	1.385 in	Crimp	Brazed Seam	0.3125 Stud	Non-Insulated	4 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.25
		10	$ 1.06
		25	$ 1.00
		50	$ 0.95
		100	$ 0.90
		250	$ 0.85
		500	$ 0.81
		1000	$ 0.77
		2500	$ 0.72

Description

General part information

019193 Series

Ring Terminal Connector 5/8 Stud Circular 8 AWG Crimp
