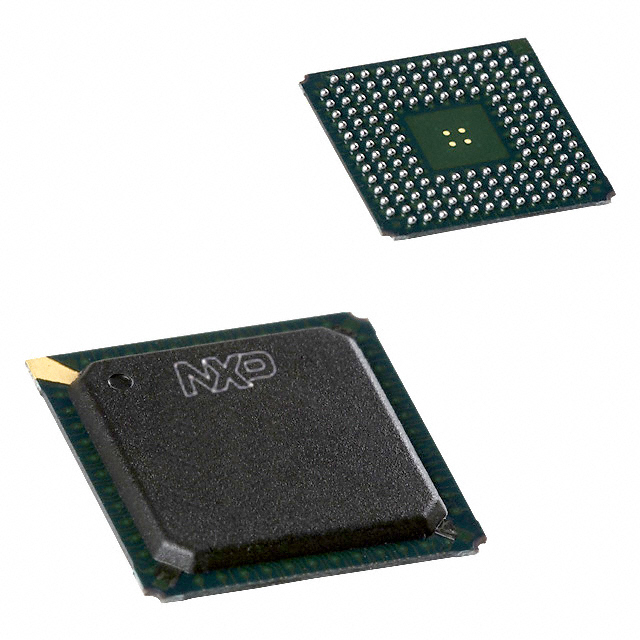

SAA7109AE/V1/G,557
ActiveFreescale Semiconductor - NXP
IC CODEC HD VIDEO 156-LBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SAA7109AE/V1/G,557
ActiveFreescale Semiconductor - NXP
IC CODEC HD VIDEO 156-LBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SAA7109AE/V1/G,557 |
|---|---|
| Data Interface | Serial |
| Mounting Type | Surface Mount |
| Number of ADCs / DACs [custom] | 3 |
| Number of ADCs / DACs [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 156-LBGA |
| Resolution (Bits) | 10 b, 9 b |
| Sigma Delta | False |
| Supplier Device Package | 156-LBGA (15x15) |
| Type | Video, HD |
| Voltage - Supply, Analog [Max] | 3.45 V |
| Voltage - Supply, Analog [Min] | 3.15 V |
| Voltage - Supply, Digital [Max] | 3.45 V |
| Voltage - Supply, Digital [Min] | 3.15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SAA7109 Series
Video, HD Interface 9, 10 b Serial 156-LBGA (15x15)
