LCMXO2280C-3FT324C

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 271 I/O 324FTBGA

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 271 I/O 324FTBGA

Technical Specifications

Parameters and characteristics for this part

Specification	LCMXO2280C-3FT324C

Mounting Type	Surface Mount
Number of I/O	271
Number of LABs/CLBs	285
Number of Logic Elements/Cells	2280
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

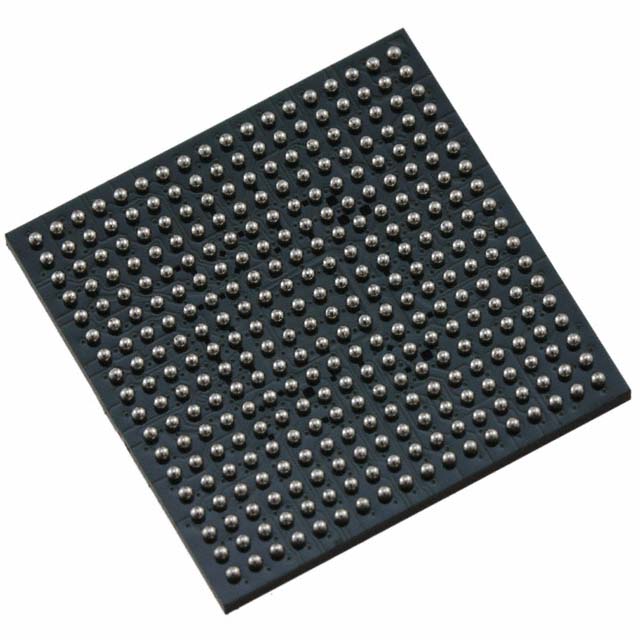

Package / Case	324-LBGA
Supplier Device Package	324-FTBGA (19x19)
Total RAM Bits	28262 bits
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	1.71 V

Part	Number of LABs/CLBs	Number of I/O	Supplier Device Package	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Total RAM Bits	Mounting Type	Number of Logic Elements/Cells	Operating Temperature [Min]	Operating Temperature [Max]
LATTICE SEMICONDUCTOR LCMXO2280C-4BN256C	285	211	256-CABGA (14x14)	256-LFBGA CSPBGA	3.465 V	1.71 V	28262 bits	Surface Mount	2280	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO2280C-3FT324C	285	271	324-FTBGA (19x19)	324-LBGA	3.465 V	1.71 V	28262 bits	Surface Mount	2280	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO2280C-4FT256C	285	211	256-FTBGA (17x17)	256-LBGA	3.465 V	1.71 V	28262 bits	Surface Mount	2280	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO2280E-3T144C	285	113 I/O	144-TQFP (20x20)	144-LQFP			28262 bits	Surface Mount	2280	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO2280C-5FT256C	285	211	256-FTBGA (17x17)	256-LBGA	3.465 V	1.71 V	28262 bits	Surface Mount	2280	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO2280E-3T100C	285	73	100-TQFP (14x14)	100-LQFP			28262 bits	Surface Mount	2280	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO2280C-4T144C	285	113 I/O	144-TQFP (20x20)	144-LQFP	3.465 V	1.71 V	28262 bits	Surface Mount	2280	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO2280C-4MN132C	285	101	132-CSPBGA (8x8)	132-LFBGA CSPBGA	3.465 V	1.71 V	28262 bits	Surface Mount	2280	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO2280C-5T100C	285	73	100-TQFP (14x14)	100-LQFP	3.465 V	1.71 V	28262 bits	Surface Mount	2280	0 °C	85 °C
LATTICE SEMICONDUCTOR LCMXO2280E-3FTN324I	285	271	324-FTBGA (19x19)	324-LBGA			28262 bits	Surface Mount	2280	-40 C	100 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MachXO Field Programmable Gate Array (FPGA) IC 271 28262 2280 324-LBGA
