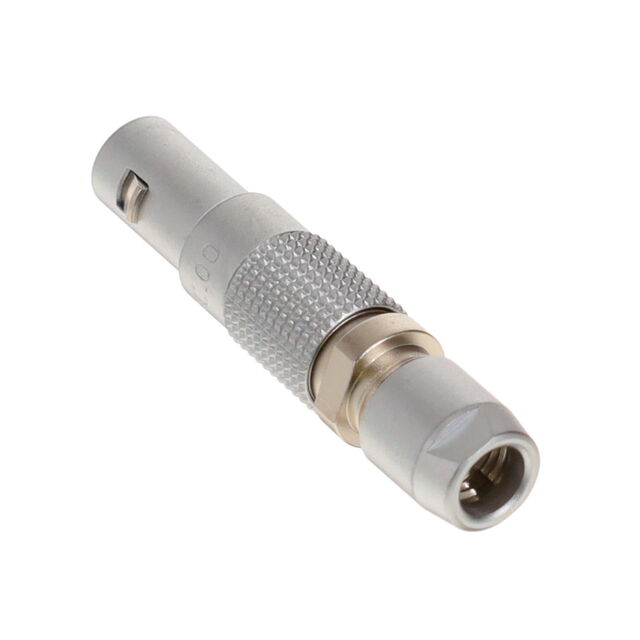

FFC.00.650.CLAC31

Active

LEMO

CONN NIMCAMAC PLUG STR 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCoaxial, Triaxial, Multi Catalog Datasheet

FFC.00.650.CLAC31

Active

LEMO

CONN NIMCAMAC PLUG STR 50 OHM

Deep-Dive with AI

DocumentsCoaxial, Triaxial, Multi Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFC.00.650.CLAC31

Body Finish	Chrome
Body Material	Brass
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549, Triaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	700 VDC

FFC.00 Series

Part	Center Contact Material	Fastening Type	Impedance	Mating Cycles	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Dielectric Material	Contact Termination	Body Finish	Body Material	Voltage Rating	Center Contact Plating	Connector Style	Ingress Protection	Cable Group	Shield Termination	Number of Ports	Housing Color	For Use With/Related Products	Accessory Type
LEMO FFC.00.650.CLAC31	Brass	Push-Pull	50 Ohms	1000	Free Hanging (In-Line)	-55 °C	260 ░C	Male Pin Plug	Polyetheretherketone (PEEK)	Solder	Chrome	Brass	700 VDC	Gold	NIM-CAMAC CD/N 549 Triaxial	IP50	RG-178	Clamp	1	Silver
LEMO FFC.00.650.CLAC27	Brass	Push-Pull	50 Ohms	5000	Free Hanging (In-Line)	-55 °C	260 ░C	Male Pin Plug	Polyetheretherketone (PEEK)	Solder	Chrome	Brass	700 VDC	Gold	NIM-CAMAC CD/N 549 Triaxial	IP50		Clamp	1	Silver
LEMO FFC.00.250.CTAC29	Brass	Push-Pull	50 Ohms	5000	Free Hanging (In-Line)	-55 °C	260 ░C	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Solder	Chrome	Brass	700 VDC	Gold	NIM-CAMAC CD/N 549	IP50	RG-316	Clamp	1	Silver
LEMO FFC.00.650.CLAC35	Brass	Push-Pull	50 Ohms	5000	Free Hanging (In-Line)	-55 °C	260 ░C	Male Pin Plug	Polyetheretherketone (PEEK)	Solder	Chrome	Brass	700 VDC	Gold	NIM-CAMAC CD/N 549 Triaxial	IP50	RG-403	Clamp	1	Silver
LEMO FFC.00.250.CTAC22Z	Brass	Push-Pull	50 Ohms	5000	Free Hanging (In-Line)	-55 °C	260 ░C	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Solder	Chrome	Brass	700 VDC	Gold	NIM-CAMAC CD/N 549	IP50	196A RG-178B	Clamp	1	Silver
LEMO FFC.00.250.CTYC31		Push-Pull	50 Ohms	5000	Free Hanging (In-Line)			Male Pin Plug	Polytetrafluoroethylene (PTFE)	Solder	Chrome	Brass		Gold	Coaxial	IP50	RG-174A	Clamp	1	Silver
LEMO FFC.00.650.CLAC31Z	Brass	Push-Pull	50 Ohms	5000	Free Hanging (In-Line)	-55 °C	260 ░C	Male Pin Plug	Polyetheretherketone (PEEK)	Solder	Chrome	Brass	700 VDC	Gold	NIM-CAMAC CD/N 549 Triaxial	IP50	RG-178	Clamp		Silver
LEMO FFC.00.250.CTAD52	Brass	Push-Pull	50 Ohms	5000	Free Hanging (In-Line)	-55 °C	260 ░C	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Solder	Chrome	Brass	700 VDC	Gold	NIM-CAMAC CD/N 549	IP50	142B RG-58C	Clamp	1	Silver
LEMO FFC.00.722.CN																					00 Series Connector	Collet
LEMO FFC.00.250.CTAC27	Brass	Push-Pull	50 Ohms	5000	Free Hanging (In-Line)	-55 °C	260 ░C	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Solder	Chrome	Brass	700 VDC	Gold	NIM-CAMAC CD/N 549	IP50	174A 179 187 188 316 RG-174	Clamp	1	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.17
		10	$ 23.79
		25	$ 22.76
		50	$ 22.03
		100	$ 21.29
		250	$ 20.12
		500	$ 19.53

Description

General part information

FFC.00 Series

NIM-CAMAC CD/N 549, Triaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

Coaxial, Triaxial, Multi Catalog

Datasheet
