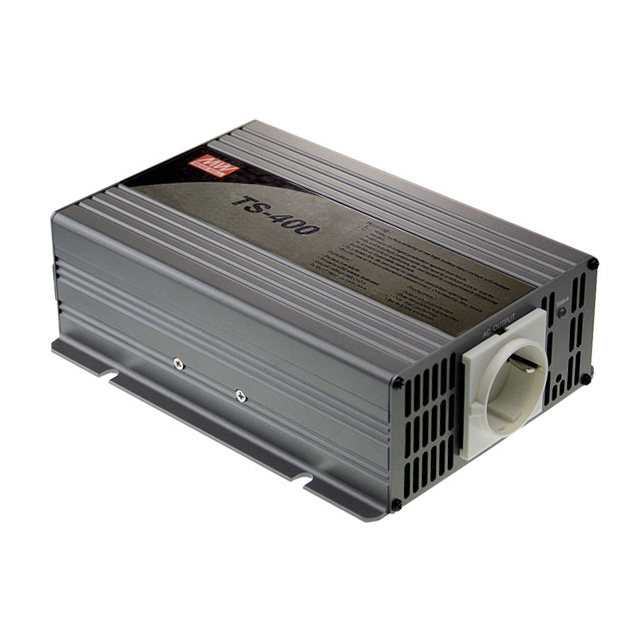

TS-400-112A
ObsoleteMEAN WELL USA Inc.
INVERTER 12VDC 400W 2 OUTLET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS-400-112A |
|---|---|
| AC Outlets | 2 |
| Connector - AC Output | NEMA 5-15R |
| Connector - Voltage Input | Terminals |
| Power - Output Continuous | 400 W |
| Power - Output Surge | 800 W |
| Region Utilized | North America |
| Remote Capability | True |
| Size [x] | 8.07 in |
| Size [x] | 205 mm |
| Size [y] | 6.22 in |
| Size [y] | 158 mm |
| Size [z] | 2.64 " |
| Size [z] | 67 mm |
| Voltage - Input | 12 VDC |
| Voltage - Output | 110 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TS-400 Series
12VDC Voltage Input 400 W Power Output Continuous Inverter 2 AC Outlets NEMA 5-15R North America
