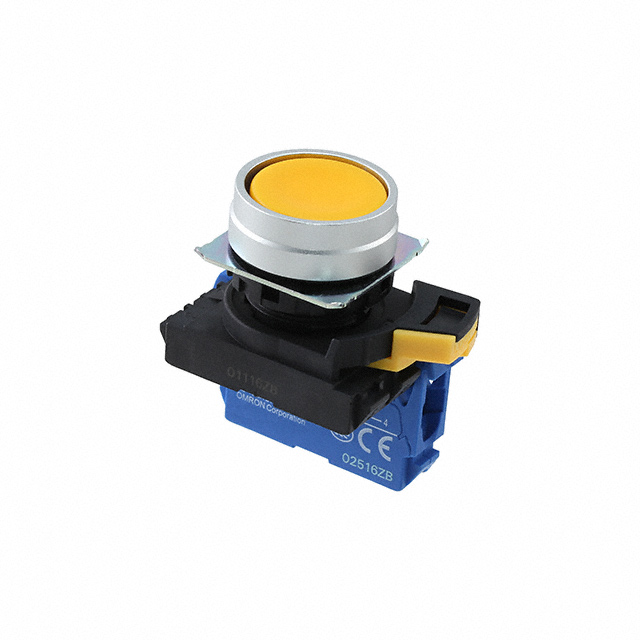

A22NN-MNM-NYA-G100-NN

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 10A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A22NN-MNM-NYA-G100-NN

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 10A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A22NN-MNM-NYA-G100-NN

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Yellow
Current Rating (Amps)	10 A
Electrical Life	500000 Cycles
Ingress Protection	IP66
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	24 V

A22NN Series

...

Part	Actuator Marking	Current Rating (Amps)	Termination Style	Type	Mounting Type	Color - Actuator/Cap	Mechanical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Voltage Rating - DC	Voltage Rating - AC	Electrical Life	Panel Cutout Dimensions [diameter]	Ingress Protection	Features
Omron Electronics Inc-EMC Div A22NN-MNM-NAA-P202-NN	No Marking	10 A	Spring Terminal	Standard	Panel Mount Front	Blue	5000000 Cycles	DPST-NC	70 °C	-25 °C	On-Mom	Button Flush Round	24 V	120 V	500000 Cycles
Omron Electronics Inc-EMC Div A22NN-RNA-NRA-P002-NN	No Marking	10 A	Spring Terminal	Standard	Panel Mount Front	Red	500000 Cycles	SPST-NC	70 °C	-25 °C	On-Off	Button Flush Round	24 V	120 V	500000 Cycles
Omron Electronics Inc-EMC Div A22NN-MPA-NGA-G100-NN	No Marking	10 A	Screw Terminal	Standard	Panel Mount Front	Green	500000 Cycles	SPST-NO	70 °C	-25 °C	Off-On	Button Round	24 V	120 V	500000 Cycles	22.3 mm	IP66
Omron Electronics Inc-EMC Div A22NN-BNA-NAA-G202-NN	No Marking	10 A	Screw Terminal	Standard	Panel Mount Front	Blue	500000 Cycles	DPST-NC	70 °C	-25 °C	On-Off	Button Flush Round	24 V	120 V	500000 Cycles	22.3 mm	IP66
Omron Electronics Inc-EMC Div A22NN-MNA-NWA-P202-NN	No Marking	10 A	Spring Terminal	Standard	Panel Mount Front	White	500000 Cycles	DPST-NC	70 °C	-25 °C	On-Off	Button Flush Round	24 V	120 V	500000 Cycles
Omron Electronics Inc-EMC Div A22NN-MPM-NGA-G202-NN	No Marking	10 A	Screw Terminal	Standard	Panel Mount Front	Green	5000000 Cycles	DPST-NC	70 °C	-25 °C	On-Mom	Button Round	24 V	120 V	500000 Cycles	22.3 mm	IP66
Omron Electronics Inc-EMC Div A22NN-BPA-NWA-G101-NN	No Marking	10 A	Screw Terminal	Standard	Panel Mount Front	White	500000 Cycles	DPST-NO	70 °C	-25 °C	Off-On	Button Round	24 V	120 V	500000 Cycles	22.3 mm	IP66
Omron Electronics Inc-EMC Div A22NN-MNM-NYA-G100-NN	No Marking	10 A	Screw Terminal	Standard	Panel Mount Front	Yellow	5000000 Cycles	SPST-NO	70 °C	-25 °C	Off-Mom	Button Flush Round	24 V	120 V	500000 Cycles	22.3 mm	IP66
Omron Electronics Inc-EMC Div A22NN-MNA-NYA-G101-NN	No Marking	10 A	Screw Terminal	Standard	Panel Mount Front	Yellow	500000 Cycles	DPST-NO	70 °C	-25 °C	Off-On	Button Flush Round	24 V	120 V	500000 Cycles	22.3 mm	IP66
Omron Electronics Inc-EMC Div A22NN-BGM-NAA-G102-NN	No Marking	10 A	Screw Terminal	Standard	Panel Mount Front	Blue	5000000 Cycles	DPST-NO/NC	70 °C	-25 °C	Off-Mom On-Mom	Button Flush Round	24 V	120 V	500000 Cycles	22.3 mm	IP66	Full Guard Bezel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.02
		10	$ 12.57
		25	$ 12.02
		50	$ 11.40
		100	$ 10.98
		250	$ 10.29
		500	$ 9.53
		1000	$ 8.99

Description

General part information

A22NN Series

Pushbutton Switch SPST-NO Standard Panel Mount, Front
