RFT-1230
ActiveRF Industries
TNC FEMALE-BNC MALE
Deep-Dive with AI
Search across all available documentation for this part.
RFT-1230
ActiveRF Industries
TNC FEMALE-BNC MALE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RFT-1230 |
|---|---|
| Adapter Series | BNC to TNC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | BNC Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock, Threaded |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
- Series
| Part | Convert From (Adapter End) | Mounting Type | Style | Frequency - Max [Max] | Adapter Type | Dielectric Material | Impedance | Center Contact Plating | Body Material | Adapter Series | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Convert To (Adapter End) | Body Finish | Conversion Type | Center Gender | Fastening Type | Mating Cycles | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RF Industries | MHF Jack Female Socket | Free Hanging (In-Line) | Straight | 6000 MHz | Plug to Jack | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Brass | SMA to MHF | Beryllium Copper | 90 °C | -40 °C | Male Pin SMA Plug | Gold | Between Series | ||||
RF Industries | Female Socket SMA Jack | Free Hanging (In-Line) | Straight | 12.4 GHz | Plug to Jack | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Brass | SMA to RP-SMA | Beryllium Copper | 85 °C | -65 ░C | Female Socket RP-SMA Plug | Nickel | Between Series | Female to Female | |||
RF Industries | Free Hanging (In-Line) | Straight | Plug to Jack | Polytetrafluoroethylene (PTFE) | Gold | SMA to UHF | Male Pin SMA Plug | Nickel | Between Series | |||||||||||
RF Industries | TNC Jack Female Socket | Free Hanging (In-Line) | Straight | 4 GHz | Plug to Jack | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Brass | BNC to TNC | Brass | 85 °C | -65 ░C | BNC Plug Male Pin | Nickel | Between Series | Bayonet Lock Threaded | |||
RF Industries | Female Socket SMA Jack | Free Hanging (In-Line) Right Angle | Right Angle | 12.4 GHz | Plug to Jack | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Brass | SMA to RP-SMA | Brass | Female Socket RP-SMA Plug | Nickel | Between Series | Female to Female | |||||
RF Industries | Free Hanging (In-Line) | Straight | 11 GHz | Plug to Jack | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Brass | SMA to TNC | Phosphor Bronze | 85 °C | -65 ░C | Female Socket SMA Jack | Nickel | Between Series | 500 | ||||
RF Industries | Female Socket N Jack | Free Hanging (In-Line) | Straight | 7 GHz | Plug to Jack | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Brass | RP-TNC to N | Phosphor Bronze | 85 °C | -65 ░C | Female Socket RP-TNC Plug | Nickel | Between Series | ||||
RF Industries | SMB Jack Male Pin | Free Hanging (In-Line) | Straight | 4 GHz | Jack to Jack | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Brass | SMA to SMB | Beryllium Copper | 165 °C | -65 ░C | Female Socket SMA Jack | Nickel | Between Series | Snap-On Threaded | |||
RF Industries | UHF Mini Plug Male Pin | Free Hanging (In-Line) | Straight | 2 GHz | Plug to Plug | Polyoxymethylene (POM) Acetal | 50 Ohms | Gold | Brass | Mini to FME UHF | Brass | 85 °C | -65 ░C | FME Plug Male Pin | Nickel | Between Series | Male to Male | |||
RF Industries | Female Socket SMA Jack | Straight | 4 GHz | Jack to Jack | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Brass | BNC to SMA | Beryllium Copper | 165 °C | -65 ░C | BNC Jack Female Socket | Nickel | Between Series | Female to Female | Bayonet Lock Threaded | Bulkhead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.43 | |
| 50 | $ 9.03 | |||
| 100 | $ 8.66 | |||
Description
General part information
- Series

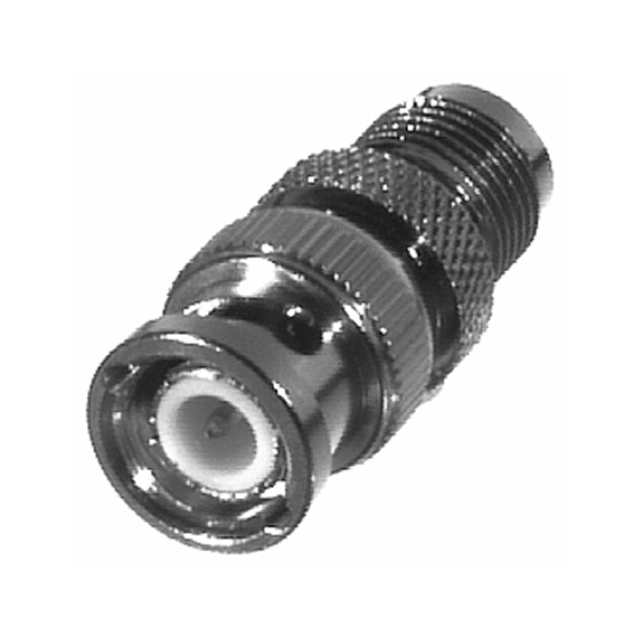

Adapter Coaxial Connector TNC Jack, Female Socket To BNC Plug, Male Pin 50 Ohms
