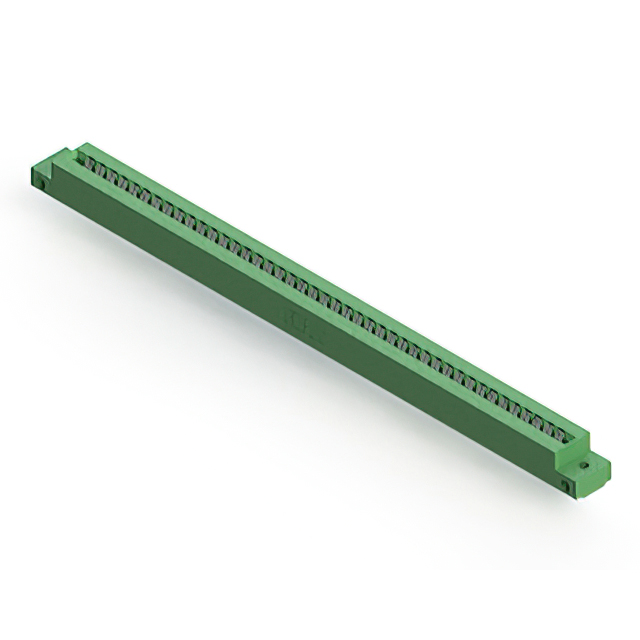

306-043-421-112

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

306-043-421-112

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-043-421-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

306-043 Series

Part	Number of Positions	Contact Type	Card Type	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Termination	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Termination Rows	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Material - Insulation	Pitch [x]	Pitch [x]	Read Out	Gender	Features
EDAC Inc. 306-043-521-102	86	Cantilever	Non Specified - Dual Edge	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	43	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Through Hole	1	Green	10 Áin	0.25 Ám	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Dual	Female
EDAC Inc. 306-043-420-158	86	Cantilever	Non Specified - Dual Edge	Tin			4-40 Flush Mount Threaded Insert Top Opening	Solder	43	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Panel Mount Through Hole	1	Green			Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Dual	Female	Card Guides
EDAC Inc. 306-043-421-112	86	Cantilever	Non Specified - Dual Edge	Tin	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Solder	43	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Panel Mount Through Hole	1	Green			Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Dual	Female
EDAC Inc. 306-043-521-178	86	Cantilever	Non Specified - Dual Edge	Gold			4-40 Flush Mount Threaded Insert Top Opening	Solder	43	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Panel Mount Through Hole	1	Green	10 Áin	0.25 Ám	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Dual	Female	Card Guides
EDAC Inc. 306-043-520-178	86	Cantilever	Non Specified - Dual Edge	Gold			4-40 Flush Mount Threaded Insert Top Opening	Solder	43	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Panel Mount Through Hole	1	Green	10 Áin	0.25 Ám	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Dual	Female	Card Guides
EDAC Inc. 306-043-520-107	86	Cantilever	Non Specified - Dual Edge	Gold			Flush Mount M3 Threaded Insert Top Opening	Solder	43	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Panel Mount Through Hole	1	Green	10 Áin	0.25 Ám	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Dual	Female
EDAC Inc. 306-043-400-108	86	Cantilever	Non Specified - Dual Edge	Tin			4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	43	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2		1	Green			Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Dual	Female
EDAC Inc. 306-043-521-101	86	Cantilever	Non Specified - Dual Edge	Gold				Solder	43	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Through Hole	1	Green	10 Áin	0.25 Ám	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Dual	Female
EDAC Inc. 306-043-521-104	86	Cantilever	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Solder	43	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2	Through Hole	1	Green	10 Áin	0.25 Ám	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Dual	Female
EDAC Inc. 306-043-500-107	86	Cantilever	Non Specified - Dual Edge	Gold			Flush Mount M3 Threaded Insert Top Opening	Solder Eyelet(s)	43	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2		1	Green	10 Áin	0.25 Ám	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Dual	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 21.39

Description

General part information

306-043 Series

86 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
