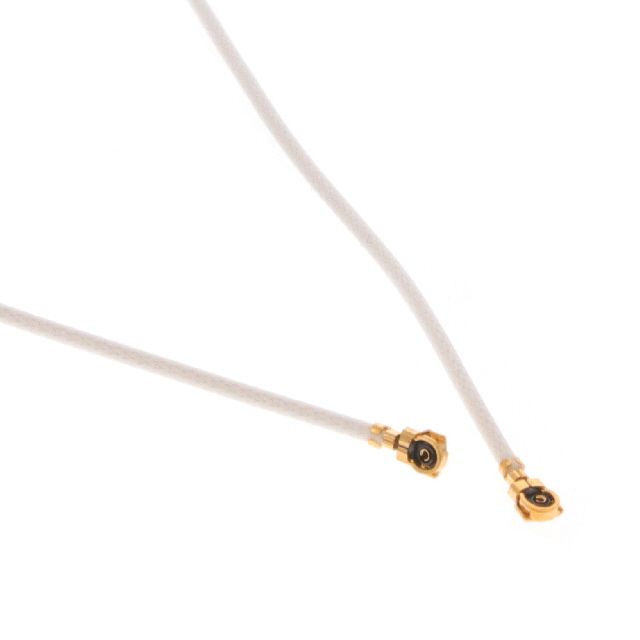

MXJA01JA5000
ObsoleteMurata Power Solutions Inc.
CBL ASSY JSC PLUG TO PLUG 19.69"
Deep-Dive with AI
Search across all available documentation for this part.
MXJA01JA5000
ObsoleteMurata Power Solutions Inc.
CBL ASSY JSC PLUG TO PLUG 19.69"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MXJA01JA5000 |
|---|---|
| 1st Connector | Right Angle, JSC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | JSC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | Coaxial Cable |
| Cable Type [diameter] | 0.81 mm |
| Color | White |
| Features | Shielded |
| Frequency - Max [Max] | 12 GHz |
| Length | 50 cm |
| Length | 19.69 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | JSC to JSC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MXJA01 Series
Cable Assembly Coaxial JSC to JSC 0.81mm OD Coaxial Cable 19.69" (500.00mm)
