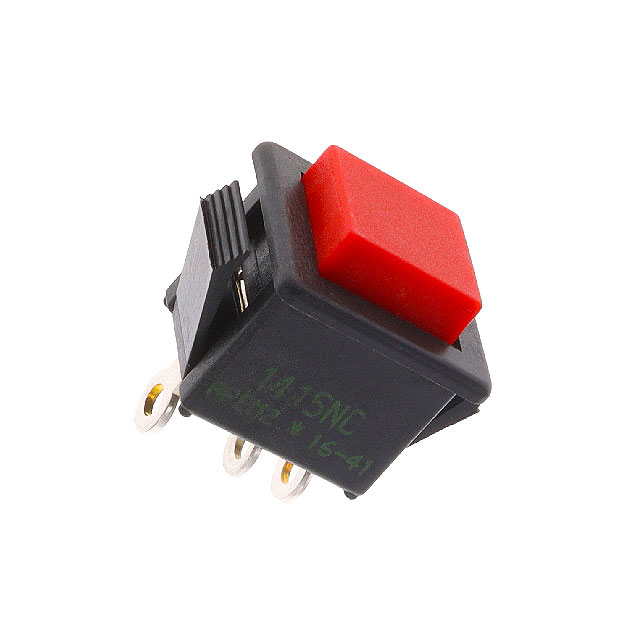

1415NC6
ActiveAPEM
SWITCH PUSHBUTTON SPDT 3A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1415NC6
ActiveAPEM
SWITCH PUSHBUTTON SPDT 3A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1415NC6 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 3 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 16.5 mm |
| Panel Cutout Dimensions [y] | 14.3 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.16 | |
| 10 | $ 6.18 | |||
| 25 | $ 5.83 | |||
| 60 | $ 5.51 | |||
| 120 | $ 5.27 | |||
| 300 | $ 4.97 | |||
| 540 | $ 4.78 | |||
| 1020 | $ 4.59 | |||
Description
General part information
1415 Series
Pushbutton Switch SPDT Standard Panel Mount, Snap-In
