M1YXK-2040K

Active

3M (TC)

IDC CABLE - MPD20K/MC20F/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series Ribbon Cable Assembly Length Guide +1

M1YXK-2040K

Active

3M (TC)

IDC CABLE - MPD20K/MC20F/X

Deep-Dive with AI

Documents1700 Series Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1YXK-2040K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Plug to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief, Flange
Length [x]	1.02 m
Length [x]	3.34 ft
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1YXK Series

Part	Color	Number of Positions	Features	Connector Type	Shielding	Cable Termination	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
3M (TC) M1YXK-2040K	Multiple Twisted Pair (Flat)	20	Flange Polarizing Key Strain Relief	Plug to Cable	Unshielded	IDC	1.02 m	3.34 ft	0.1 in	2.54 mm	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	Gold
3M (TC) M1YXK-2036J		20	Flange Polarizing Key Strain Relief	Plug to Cable	Unshielded	IDC	914.4 mm	3 ft	0.1 in	2.54 mm	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	Gold
3M (TC) M1YXK-3636J		36	Flange Polarizing Key Strain Relief	Plug to Cable	Unshielded	IDC	914.4 mm	3 ft	0.1 in	2.54 mm	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	Gold
3M (TC) M1YXK-3036J		30	Flange Polarizing Key Strain Relief	Plug to Cable	Unshielded	IDC	914.4 mm	3 ft	0.1 in	2.54 mm	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	Gold
3M (TC) M1YXK-4036R	Multiple Ribbon	40	Flange Polarizing Key Strain Relief	Plug to Cable	Unshielded	IDC	914.4 mm	3 ft	0.1 in	2.54 mm	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	Gold
3M (TC) M1YXK-2436R	Multiple Ribbon	24	Flange Polarizing Key Strain Relief	Plug to Cable	Unshielded	IDC	914.4 mm	3 ft	0.1 in	2.54 mm	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	Gold
3M (TC) M1YXK-1036R	Multiple Ribbon	10	Flange Polarizing Key Strain Relief	Plug to Cable	Unshielded	IDC	914.4 mm	3 ft	0.1 in	2.54 mm	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	Gold
3M (TC) M1YXK-6036R	Multiple Ribbon	60	Flange Polarizing Key Strain Relief	Plug to Cable	Unshielded	IDC	914.4 mm	3 ft	0.1 in	2.54 mm	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	Gold
3M (TC) M1YXK-5036J		50	Flange Polarizing Key Strain Relief	Plug to Cable	Unshielded	IDC	914.4 mm	3 ft	0.1 in	2.54 mm	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	Gold
3M (TC) M1YXK-2436J		24	Flange Polarizing Key Strain Relief	Plug to Cable	Unshielded	IDC	914.4 mm	3 ft	0.1 in	2.54 mm	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.04
		10	$ 17.76
		25	$ 16.07
		50	$ 14.94
		100	$ 13.91
		250	$ 12.69
		500	$ 11.88

Description

General part information

M1YXK Series

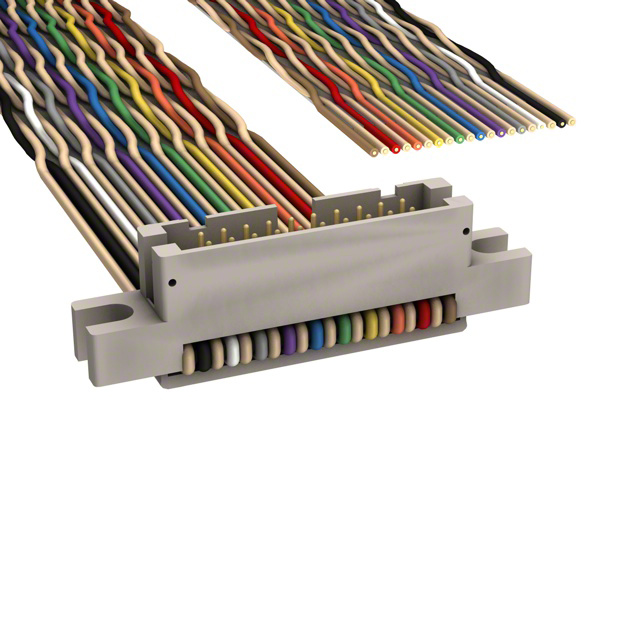

20 Position Cable Assembly Rectangular Plug to Cable 3.34' (1.02m)
