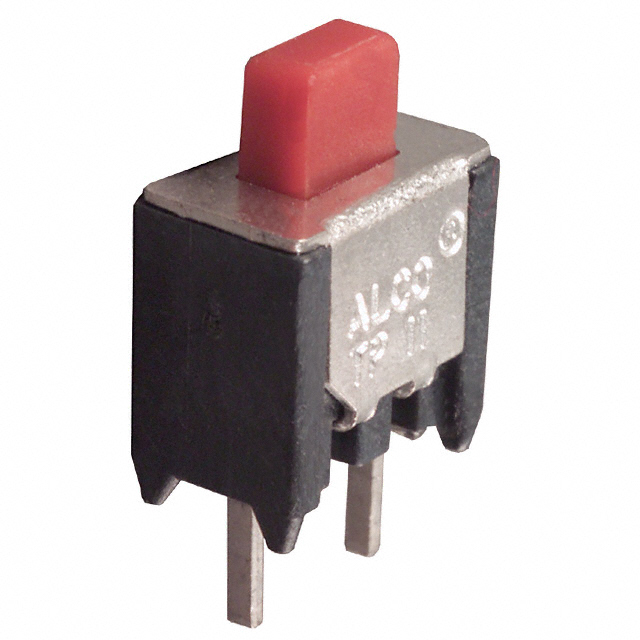

TP11CGPC2
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSH SPST-NO 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TP11CGPC2
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSH SPST-NO 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TP11CGPC2 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger, Rectangular |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 100000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
TP11 Series
| Part | Mounting Type | Type | Circuit | Voltage Rating - AC | Electrical Life | Voltage Rating - DC | Switch Function | Termination Style | Actuator Marking | Actuator Type | Current Rating (Amps) | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Through Hole | Standard | SPST-NO | 20 V | 100000 Cycles | 20 V | Off-Mom | PC Pin | No Marking | Plunger Rectangular | 0.4 VA | Red | 65 °C | -30 ░C |
TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Standard | SPST-NO | 20 V | 100000 Cycles | 20 V | Off-Mom | PC Pin | No Marking | Plunger Rectangular | 0.4 VA | Red | 65 °C | -30 ░C |
TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Standard | SPDT | 20 V | 100000 Cycles | 20 V | On-Mom | PC Pin | No Marking | Plunger Rectangular | 0.4 VA | Red | 65 °C | -30 ░C |
TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Standard | SPDT | 20 V | 100000 Cycles | 20 V | On-Mom | PC Pin | No Marking | Plunger Rectangular | 0.4 VA | Black | 65 °C | -30 ░C |
TE Connectivity Raychem Cable Protection | Through Hole | Standard | SPDT | 20 V | 100000 Cycles | 20 V | On-Mom | PC Pin | No Marking | Plunger Rectangular | 0.4 VA | Red | 65 °C | -30 ░C |
TE Connectivity Raychem Cable Protection | Through Hole | Standard | SPST-NO | 20 V | 100000 Cycles | 20 V | Off-Mom | PC Pin | No Marking | Plunger Rectangular | 0.4 VA | Black | 65 °C | -30 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 5.14 | |
Description
General part information
TP11 Series
Pushbutton Switch SPST-NO Standard Through Hole
