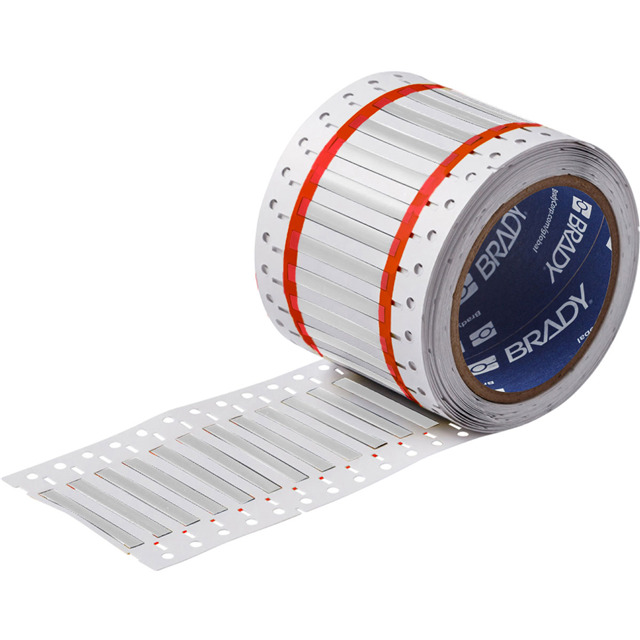

2HX-094-2-WT-4

Active

BRADY

SLEEVE, 0.094 IN DIA X 0.5 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.094 IN DIA X 0.5 IN W

Technical Specifications

Parameters and characteristics for this part

Part	Color	Label Size [Min]	Label Size [x]	Label Size [diameter]	Label Size [Max]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Label Type	Label Size	Label Size [Max]	Label Size [Min]	Label Size [diameter]	Label Size [x]
BRADY 2HX-094-2-YL-4	Yellow	0.05 in	0.5 "	0.09 in	0.08 "	Polyolefin (PO)	-40 °C	120 °C	Heat Shrinkable
BRADY 2HX-094-2-WT-4	White	0.05 in	0.5 "	0.09 in	0.08 "	Polyolefin (PO)	-40 °C	120 °C	Heat Shrinkable
BRADY 2HX-094-2.3-WT	White	1.2 mm	2.3 in	0.09 in	2 mm	Polyolefin (PO)	-40 °C	120 °C	Heat Shrinkable	2.4 mm 58.4 mm	0.08 "	0.05 in
BRADY 2HX-094-2-YL-J-3	Yellow	1.2 mm	0.67 in	0.09 in	2 mm	Polyolefin (PO)	-40 °C	120 °C	Heat Shrinkable		0.08 "	0.05 in
BRADY 2HX-094-2-YL-3	Yellow	1.2 mm	0.67 in	0.09 in	2 mm	Polyolefin (PO)	-40 °C	120 °C	Heat Shrinkable		0.08 "	0.05 in
BRADY 2HX-094-2-WT-SC	White	0.05 in			0.08 "	Polyolefin (PO)	-40 °C	120 °C	Heat Shrinkable	1.2 mm 2 mm 2.4 mm 50.8 mm			0.09 in	50.8 mm
BRADY 2HX-094-2-WT	White	0.05 in			0.08 "	Polyolefin (PO)	-40 °C	120 °C	Heat Shrinkable	1.2 mm 2 mm 2.4 mm 50.8 mm			0.09 in	50.8 mm
BRADY 2HX-094-2-YL-J-2	Yellow					Polyolefin (PO)	-40 °C	120 °C	Heat Shrinkable
BRADY 2HX-094-2.3-YL-2	Yellow	0.05 in 1.2 mm			0.08 " 2 mm	Polyolefin (PO)	-40 °C	120 °C	Heat Shrinkable				0.09 in 2.4 mm	1.15 in 29.2 mm
BRADY 2HX-094-2-YL-S	Yellow	0.05 in			0.08 "	Polyolefin (PO)	-40 °C	120 °C	Heat Shrinkable	1.2 mm 2 mm 2.4 mm 50.8 mm			0.09 in	50.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1703.87

General part information

White Heat Shrinkable Label 0.50" W x 0.09" Dia (12.7mm x 2.4mm); Cable O.D. 0.05" ~ 0.08" (1.2mm ~ 2.0mm)

Technical documentation and resources
