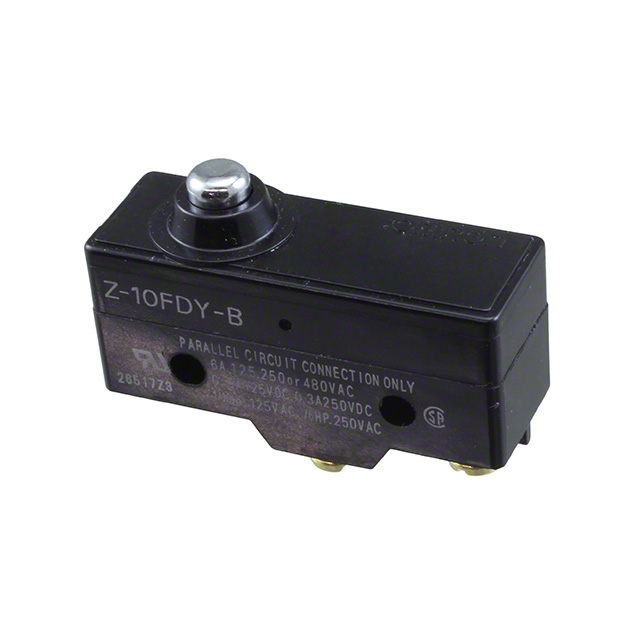

Z-10FDY-B
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
Z-10FDY-B
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Z-10FDY-B |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT (DB/DM) |
| Current Rating (Amps) | 10 A |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP00 |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force [Max] | 740 gf |
| Operating Force [Min] | 455 gf |
| Operating Position | 0.846 in |
| Operating Position | 21.5 mm |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 1.6 mm |
| Overtravel | 0.062 in |
| Pretravel | 0.03 in |
| Pretravel | 0.8 mm |
| Release Force | 114 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.17 | |
| 10 | $ 28.32 | |||
| 25 | $ 26.27 | |||
| 50 | $ 24.83 | |||
| 100 | $ 23.46 | |||
| 250 | $ 21.77 | |||
Description
General part information
Z-10FDY Series
Switch SPDT (DB/DM) Chassis Mount
