GP2500S20-0.040-02-0816

Active

Bergquist - Henkel

THERM PAD 406.4X203.2MM YLW

Search across all available documentation for this part.

Active

Bergquist - Henkel

THERM PAD 406.4X203.2MM YLW

Technical Specifications

Parameters and characteristics for this part

Specification	GP2500S20-0.040-02-0816

Adhesive	Tacky - Both Sides
Backing, Carrier	Fiberglass
Color	Yellow
Outline [x]	406.4 mm
Outline [y]	203.2 mm
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	95 °F
Storage/Refrigeration Temperature [Max]	35 °C
Thermal Conductivity	2.4 W/m-K
Thickness	1.016 mm
Thickness	0.04 in

Part	Shape	Shelf Life Start	Backing, Carrier	Thermal Conductivity	Adhesive	Color	Thickness	Thickness	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Outline [x]	Outline [y]	Shelf Life
Bergquist - Henkel GP2500S20-0.040-02-0816	Rectangular	Date of Manufacture	Fiberglass	2.4 W/m-K	Tacky - Both Sides	Yellow	1.016 mm	0.04 in	95 °F	35 °C	406.4 mm	203.2 mm	12 Months
Bergquist - Henkel GP2500S20-0.020-02-0816	Rectangular	Date of Manufacture	Fiberglass	2.4 W/m-K	Tacky - Both Sides	Yellow	0.508 mm	0.02 in	95 °F	35 °C	406.4 mm	203.2 mm	12 Months
Bergquist - Henkel GP2500S20-0.160-02-0816	Rectangular	Date of Manufacture	Fiberglass	2.4 W/m-K	Tacky - Both Sides	Yellow	4.06 mm	0.16 in	95 °F	35 °C	406.4 mm	203.2 mm	12 Months
Bergquist - Henkel GP2500S20-0.080-02-0816	Rectangular	Date of Manufacture	Fiberglass	2.4 W/m-K	Tacky - Both Sides	Yellow	80 mils	0.08 "	95 °F	35 °C	406.4 mm	203.2 mm	12 Months
Bergquist - Henkel GP2500S20-0.015-02-0816	Rectangular	Date of Manufacture	Fiberglass	2.4 W/m-K	Tacky - Both Sides	Yellow	0.381 mm	0.015 in	95 °F	35 °C	406.4 mm	203.2 mm	12 Months
Bergquist - Henkel GP2500S20-0.250-02-0816	Rectangular	Date of Manufacture	Fiberglass	2.4 W/m-K	Tacky - Both Sides	Yellow	6.35 mm	0.25 in	95 °F	35 °C	406.4 mm	203.2 mm	12 Months
Bergquist - Henkel GP2500S20-0.100-02-0816	Rectangular	Date of Manufacture	Fiberglass	2.4 W/m-K	Tacky - Both Sides	Yellow	2.54 mm	0.1 in	95 °F	35 °C	406.4 mm	203.2 mm	12 Months

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

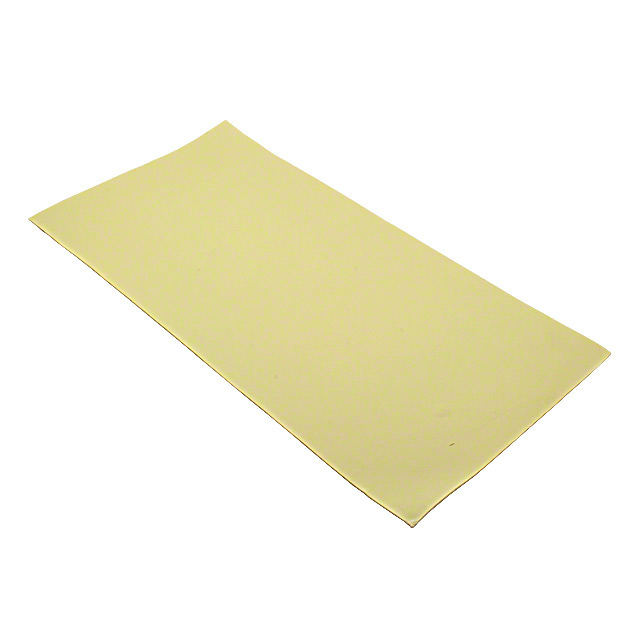

Thermal Pad Yellow 406.40mm x 203.20mm Rectangular Tacky - Both Sides
