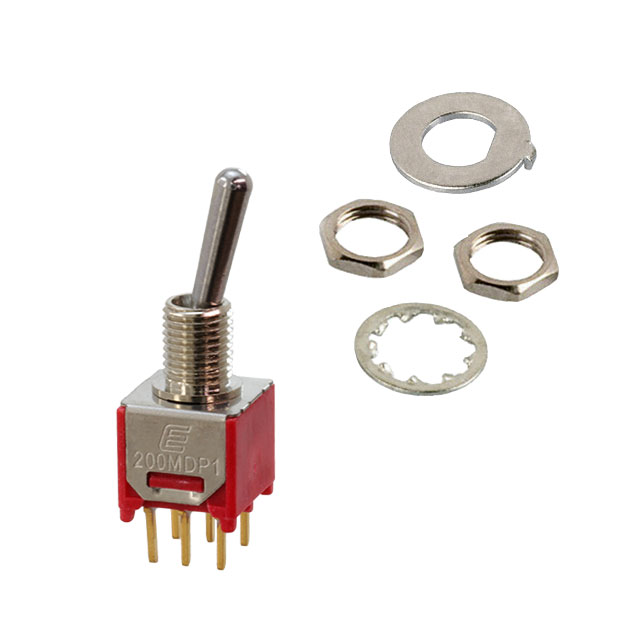

200MDP1T1B1M2REH
ActiveE-Switch
SWITCH TOGGLE DPDT 0.4VA 20V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 200MDP1T1B1M2REH |
|---|---|
| Actuator Length [x] | 9.4 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 10-48 |
| Circuit | DPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 30000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 4.95 mm |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
200MDP1 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Material | Electrical Life | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Features | Voltage Rating - DC | Illumination | Bushing Thread | Voltage Rating - AC | Actuator Type | Actuator Length [x] | Switch Function | Circuit | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | -30 ░C | 85 °C | Brass Chrome Plated | 30000 Cycles | 0.4 VA | 4.95 mm | Epoxy Sealed Terminals | 20 V | Non-Illuminated | 10-48 | 20 V | Standard Round | 9.4 mm | On-On | DPDT | PC Pin | |
E-Switch | -30 ░C | 85 °C | Brass Chrome Plated | 30000 Cycles | 0.4 VA | Epoxy Sealed Terminals | 20 V | Non-Illuminated | Unthreaded | 20 V | Standard Round | On-On | DPDT | PC Pin | Right Angle Through Hole Vertical | ||
E-Switch | -30 ░C | 85 °C | Brass Chrome Plated | 30000 Cycles | 3 A | Epoxy Sealed Terminals | 28 V | Non-Illuminated | Unthreaded | 120 V | Standard Round | 7.88 mm | On-On | DPDT | PC Pin | Through Hole Right Angle | |
E-Switch | -30 ░C | 85 °C | Brass Chrome Plated | 30000 Cycles | 3 A | Epoxy Sealed Terminals | 28 V | Non-Illuminated | Unthreaded | 120 V | Standard Round | 5.33 mm | On-On | DPDT | PC Pin | Through Hole | |
E-Switch | -30 ░C | 85 °C | Brass Chrome Plated | 30000 Cycles | 0.4 VA | 4.95 mm | Epoxy Sealed Terminals | 20 V | Non-Illuminated | 10-48 | 20 V | Standard Round | 5.33 mm | On-On | DPDT | PC Pin | Panel Mount Right Angle |
E-Switch | -30 ░C | 85 °C | Brass Chrome Plated | 30000 Cycles | 0.4 VA | 4.95 mm | Epoxy Sealed Terminals | 20 V | Non-Illuminated | 10-48 | 20 V | Standard Round | 0.5 in | On-On | DPDT | PC Pin | Panel Mount Right Angle |
E-Switch | -30 ░C | 85 °C | Brass Chrome Plated | 30000 Cycles | 3 A | Epoxy Sealed Terminals | 28 V | Non-Illuminated | Unthreaded | 120 V | Standard Round | On-On | DPDT | PC Pin | Right Angle Through Hole Vertical | ||
E-Switch | -30 ░C | 85 °C | Brass Chrome Plated | 30000 Cycles | 3 A | Epoxy Sealed Terminals | 28 V | Non-Illuminated | Unthreaded | 120 V | Standard Round | 5.33 mm | On-On | DPDT | PC Pin | Through Hole | |
E-Switch | -30 ░C | 85 °C | Brass Chrome Plated | 30000 Cycles | 3 A | Epoxy Sealed Terminals | 28 V | Non-Illuminated | Unthreaded | 120 V | Standard Round | 9.4 mm | On-On | DPDT | PC Pin | Right Angle Through Hole Vertical | |
E-Switch | -30 ░C | 85 °C | Brass Chrome Plated | 30000 Cycles | 0.4 VA | Epoxy Sealed Terminals | 20 V | Non-Illuminated | Unthreaded | 20 V | Standard Round | 10.41 mm | On-On | DPDT | PC Pin | Through Hole |
