09140082733

Active

HARTING Technology Group

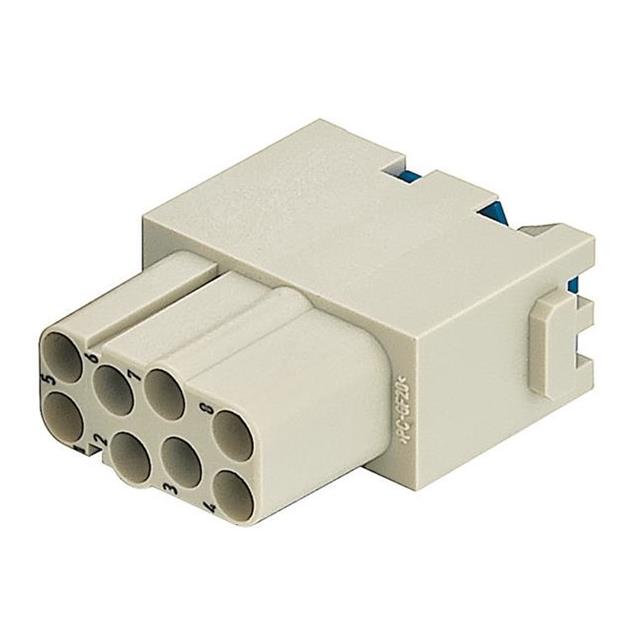

HEAVY DUTY CONNECTOR, HAN-QUICK LOCK®, HAN-MODULAR EE SERIES, MODULE, 8 CONTACTS, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-QUICK LOCK®, HAN-MODULAR EE SERIES, MODULE, 8 CONTACTS, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09140082733

Color	Gray
Connector Type	Module
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Push In with Lock
Voltage Rating	400 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Gender	Housing Material	Voltage Rating	Termination Style	Material Flammability Rating	Contact Material	Number of Positions	Color	Connector Type	Contact Finish
HARTING Technology Group 09140082635
HARTING Technology Group 09140082734	125 °C	-40 °C	16 A	Female	Polycarbonate (PC)	400 V	Push In with Lock	UL94 V-0	Copper Alloy	8	Gray	Module	Silver
HARTING Technology Group 09140082633	125 °C	-40 °C	16 A	Male	Polycarbonate (PC)	400 V	Push In with Lock	UL94 V-0	Copper Alloy	8	Gray	Module	Silver
HARTING Technology Group 09140082733	125 °C	-40 °C	16 A	Female	Polycarbonate (PC)	400 V	Push In with Lock	UL94 V-0	Copper Alloy	8	Gray	Module	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module Gray 8 Position Push In with Lock
