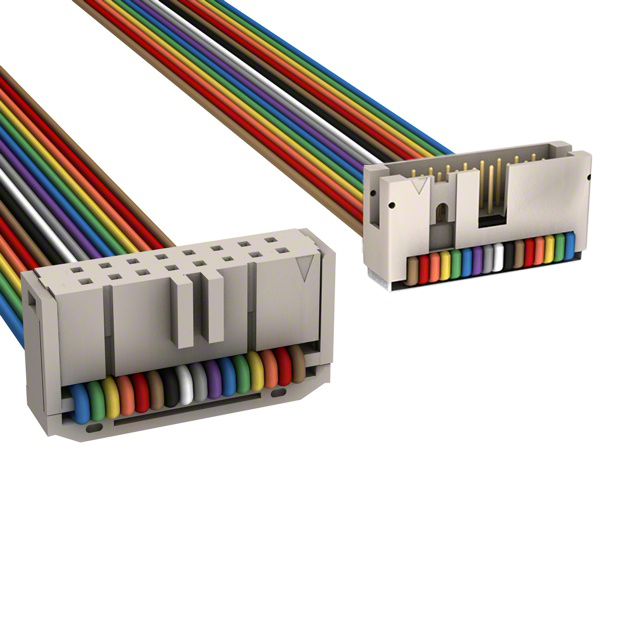

M3URK-1606R

Active

3M (TC)

IDC CABLE - MKS16K/MC16M/MPR16K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

M3URK-1606R

Active

3M (TC)

IDC CABLE - MKS16K/MC16M/MPR16K

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3URK-1606R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3URK Series

Part	Shielding	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Contact Finish	Cable Termination	Connector Type	Number of Positions	Pitch - Cable	Pitch - Cable	Number of Rows	Features	Color	Length	Number of Positions	Length [x]	Length [x]
3M (TC) M3URK-6006R	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '	Gold	IDC	Socket to Plug	60	0.05 "	1.27 mm	2	Polarizing Key Strain Relief	Multiple Ribbon
3M (TC) M3URK-3406R	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '	Gold	IDC	Socket to Plug	34	0.05 "	1.27 mm	2	Polarizing Key Strain Relief	Multiple Ribbon
3M (TC) M3URK-2660K	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	1.52 m			Gold	IDC	Socket to Plug	26	0.05 "	1.27 mm	2	Polarizing Key Strain Relief	Multiple Twisted Pair (Flat)	5 '
3M (TC) M3URK-1606R	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '	Gold	IDC	Socket to Plug		0.05 "	1.27 mm	2	Polarizing Key Strain Relief	Multiple Ribbon		16
3M (TC) M3URK-5036R	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin				Gold	IDC	Socket to Plug	50	0.05 "	1.27 mm	2	Polarizing Key Strain Relief	Multiple Ribbon			3 ft	914.4 mm
3M (TC) M3URK-1640K	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin				Gold	IDC	Socket to Plug		0.05 "	1.27 mm	2	Polarizing Key Strain Relief	Multiple Twisted Pair (Flat)		16	3.34 ft	1.02 m
3M (TC) M3URK-6006J	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '	Gold	IDC	Socket to Plug	60	0.05 "	1.27 mm	2	Polarizing Key Strain Relief
3M (TC) M3URK-1660K	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	1.52 m			Gold	IDC	Socket to Plug		0.05 "	1.27 mm	2	Polarizing Key Strain Relief	Multiple Twisted Pair (Flat)	5 '	16
3M (TC) M3URK-1036J	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin				Gold	IDC	Socket to Plug	10	0.05 "	1.27 mm	2	Polarizing Key Strain Relief				3 ft	914.4 mm
3M (TC) M3URK-5020K	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	508 mm			Gold	IDC	Socket to Plug	50	0.05 "	1.27 mm	2	Polarizing Key Strain Relief	Multiple Twisted Pair (Flat)	1.67 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.68
		10	$ 15.15
		25	$ 13.71
		50	$ 12.73
		100	$ 11.85
		250	$ 10.81
		500	$ 10.11
		1000	$ 9.52

Description

General part information

M3URK Series

16 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

3302 Series

Datasheet
