S-1170B27PD-OTMTFG

Obsolete

ABLIC Inc.

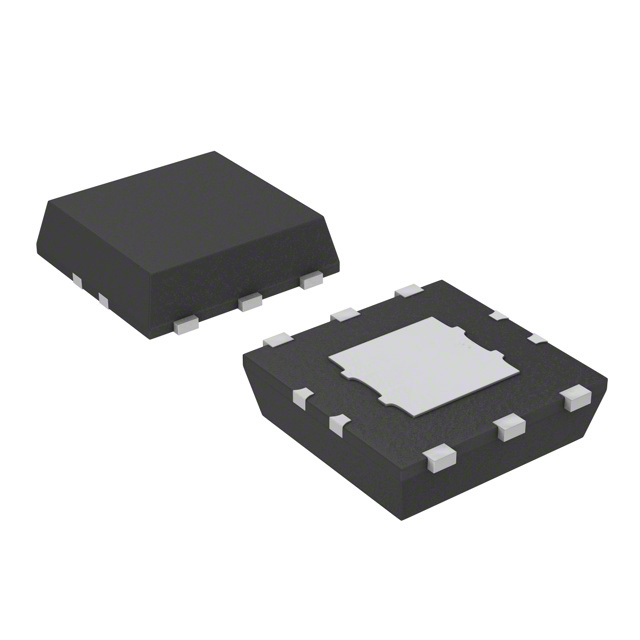

IC REG LINEAR 2.7V 800MA 6HSON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S-1170B27PD-OTMTFG

Obsolete

ABLIC Inc.

IC REG LINEAR 2.7V 800MA 6HSON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S-1170B27PD-OTMTFG

Control Features	Enable
Current - Output	800 mA
Current - Quiescent (Iq)	1 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	6-SMD, Flat Leads Exposed Pad
Protection Features	Over Current, Thermal Shutdown
PSRR	70 dB
Supplier Device Package	6-HSON (A) (2.9x2.8)
Supplier Device Package [x]	2.9
Supplier Device Package [y]	2.8
Voltage - Input (Max) [Max]	6.5 V
Voltage - Output (Min/Fixed)	2.7 V
Voltage Dropout (Max) [Max]	0.22 V

S-1170 Series

Part	Control Features	Output Type	Current - Quiescent (Iq)	Output Configuration	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	PSRR	Voltage Dropout (Max) [Max]	Package / Case	Current - Output	Mounting Type	Number of Regulators	Voltage - Output (Min/Fixed)	Protection Features
ABLIC Inc. S-1170B27PD-OTMTFG	Enable	1.81 mOhm	1 µA	Positive	6.5 V	85 °C	-40 °C	6-HSON (A) (2.9x2.8)	2.8	2.9	70 dB	0.22 V	6-SMD Flat Leads Exposed Pad	800 mA	Surface Mount	1	2.7 V	Over Current Thermal Shutdown
ABLIC Inc. S-1170B47UC-OUGTFG	Enable	1.81 mOhm	1 µA	Positive	6.5 V	85 °C	-40 °C	SOT-89-5			65 dB	0.18 V	SOT-89-5/6	800 mA	Surface Mount	1	4.7 V	Over Current Thermal Shutdown
ABLIC Inc. S-1170B44UC-OUDTFU	Enable	1.81 mOhm	1 µA	Positive	6.5 V	85 °C	-40 °C	SOT-89-5			65 dB	0.18 V	SOT-89-5/6	800 mA	Surface Mount	1	4.4 V	Over Current Thermal Shutdown
ABLIC Inc. S-1170B48UC-OUHTFU	Enable	1.81 mOhm	1 µA	Positive	6.5 V	85 °C	-40 °C	SOT-89-5			65 dB	0.18 V	SOT-89-5/6	800 mA	Surface Mount	1	4.8 V	Over Current Thermal Shutdown
ABLIC Inc. S-1170B40UC-OTZTFG	Enable	1.81 mOhm	1 µA	Positive	6.5 V	85 °C	-40 °C	SOT-89-5			65 dB	0.18 V	SOT-89-5/6	800 mA	Surface Mount	1	4 V	Over Current Thermal Shutdown
ABLIC Inc. S-1170B16UC-OTBTFG	Enable	1.81 mOhm	1 µA	Positive	6.5 V	85 °C	-40 °C	SOT-89-5			70 dB	0.35 V	SOT-89-5/6	800 mA	Surface Mount	1	1.6 V	Over Current Thermal Shutdown
ABLIC Inc. S-1170B17PD-OTCTFG	Enable	1.81 mOhm	1 µA	Positive	6.5 V	85 °C	-40 °C	6-HSON (A) (2.9x2.8)	2.8	2.9	70 dB	0.3 V	6-SMD Flat Leads Exposed Pad	800 mA	Surface Mount	1		Over Current Thermal Shutdown
ABLIC Inc. S-1170B52UC-OULTFU	Enable	1.81 mOhm	1 µA	Positive	6.5 V	85 °C	-40 °C	SOT-89-5			65 dB	0.18 V	SOT-89-5/6	800 mA	Surface Mount	1	5.2 V	Over Current Thermal Shutdown
ABLIC Inc. S-1170B35PD-OTUTFG	Enable	1.81 mOhm	1 µA	Positive	6.5 V	85 °C	-40 °C	6-HSON (A) (2.9x2.8)	2.8	2.9	65 dB	0.18 V	6-SMD Flat Leads Exposed Pad	800 mA	Surface Mount	1	3.5 V	Over Current Thermal Shutdown
ABLIC Inc. S-1170B30UC-OTPTFU	Enable	1.81 mOhm	1 µA	Positive	6.5 V	85 °C	-40 °C	SOT-89-5			70 dB	0.18 V	SOT-89-5/6	800 mA	Surface Mount	1		Over Current Thermal Shutdown
