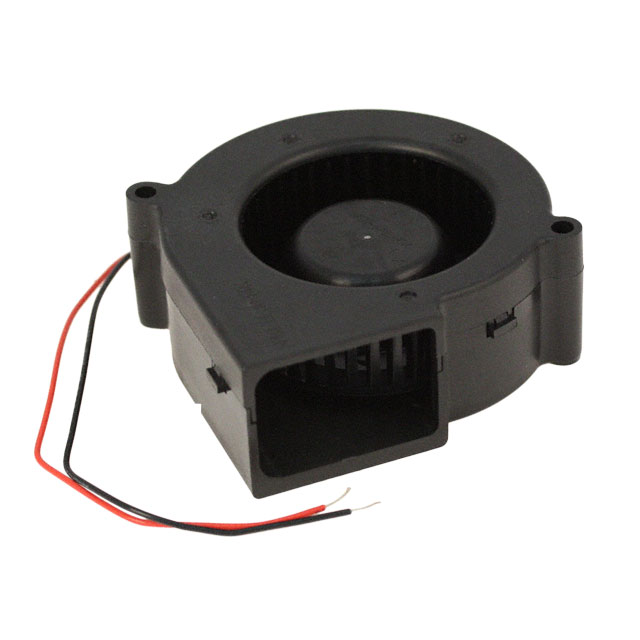

BG0703-B054-000-00

Obsolete

NMB TECHNOLOGIES

FAN BLOWER 75X30MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans & Blowers Catalog Datasheet +2

BG0703-B054-000-00

Obsolete

NMB TECHNOLOGIES

FAN BLOWER 75X30MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans & Blowers Catalog Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BG0703-B054-000-00

Air Flow	0.297 m³/min
Air Flow	10.6 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	150 mA
Fan Type	Blower
Material - Blade	Plastic
Material - Frame	Plastic
Noise	38.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.6 W
RPM	3000 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	75 mm
Size / Dimension [z]	75 mm
Static Pressure	0.441 in H2O
Static Pressure	110 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26 VDC
Voltage Range [Min]	10 VDC
Weight	0.198 lb
Weight	89.81 g
Width [y]	30 mm

BG0703 Series

Part	Air Flow	Air Flow	Termination	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Current Rating (Amps)	Bearing Type	Static Pressure	Static Pressure	Noise	Voltage - Rated	Width [y]	RPM	Material - Blade	Material - Frame	Approval Agency	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Features
NMB TECHNOLOGIES BG0703-B054-000-00	0.297 m³/min	10.6 CFM	2 Wire Leads	75 mm	Square/Rounded	75 mm	70 °C	70 °C	-10 °C	-10 °C	Blower	150 mA	Ball	0.441 in H2O	110 Pa	38.5 dB	24 VDC	30 mm	3000 RPM	Plastic	Plastic	CE CSA UL VDE	0.198 lb	89.81 g	10 VDC	26 VDC	3.6 W
NMB TECHNOLOGIES BG0703-B053-00L-00	0.246 mł/min	8.8 CFM	3 Wire Leads	75.7 mm	Square/Rounded	75.7 mm	70 °C	70 °C	-10 °C	-10 °C	Blower	0.09 A	Ball	0.301 in H2O	75 Pa	34.5 dB(A)	24 VDC	30 mm	2550 RPM	Plastic	Plastic	CE CSA UL VDE	0.198 lb	89.81 g	10 VDC	27.6 VDC	2.16 W	Locked Rotor Sensor
NMB TECHNOLOGIES BG0703-B043-00S-00	0.246 mł/min	8.8 CFM	3 Wire Leads	75.7 mm	Square/Rounded	75.7 mm	70 °C	70 °C	-10 °C	-10 °C	Blower	0.18 A	Ball	0.301 in H2O	75 Pa	34.5 dB(A)	12 VDC	30 mm	2550 RPM	Plastic	Plastic	CE CSA UL VDE	0.198 lb	89.81 g	6 VDC	13.8 VDC	2.16 W	Speed Sensor (Tach)
NMB TECHNOLOGIES BG0703-B041-00L-00	0.188 mł/min	6.7 CFM	3 Wire Leads	75.7 mm	Square/Rounded	75.7 mm	70 °C	70 °C	-10 °C	-10 °C	Blower	100 mA	Ball			28 dB	12 VDC	30 mm	2000 RPM	Plastic	Plastic	CE CSA UL VDE	0.198 lb	89.81 g	6 VDC	13.8 VDC	1.2 W	Locked Rotor Sensor
NMB TECHNOLOGIES BG0703-B052-00L-00	0.207 mł/min	7.4 CFM	3 Wire Leads	75.7 mm	Square/Rounded	75.7 mm	70 °C	70 °C	-10 °C	-10 °C	Blower	70 mA	Ball	0.2 in H2O	49.8 Pa	29.5 dB(A)	24 VDC	30 mm	2200 RPM	Plastic	Plastic	CE CSA UL VDE	0.198 lb	89.81 g	10 VDC	27.6 VDC	1.68 W	Locked Rotor Sensor
NMB TECHNOLOGIES BG0703-B044-00S-00	0.297 m³/min	10.6 CFM	3 Wire Leads	75.7 mm	Square/Rounded	75.7 mm	70 °C	70 °C	-10 °C	-10 °C	Blower	0.29 A	Ball	0.441 in H2O	110 Pa	38.5 dB	12 VDC	30 mm	3000 RPM	Plastic	Plastic	CE CSA UL VDE	0.198 lb	89.81 g	6 VDC	13 VDC	3.48 W	Speed Sensor (Tach)
NMB TECHNOLOGIES BG0703-B042-00S-00	0.207 mł/min	7.4 CFM	3 Wire Leads	75.7 mm	Square/Rounded	75.7 mm	70 °C	70 °C	-10 °C	-10 °C	Blower	120 mA	Ball	0.2 in H2O	49.8 Pa	29.5 dB(A)	12 VDC	30 mm	2200 RPM	Plastic	Plastic	CE CSA UL VDE	0.198 lb	89.81 g	6 VDC	13.8 VDC	1.44 W	Speed Sensor (Tach)
NMB TECHNOLOGIES BG0703-B051-00L-00	0.188 mł/min	6.7 CFM	3 Wire Leads	75.7 mm	Square/Rounded	75.7 mm	70 °C	70 °C	-10 °C	-10 °C	Blower	60 mA	Ball			28 dB	24 VDC	30 mm	2000 RPM	Plastic	Plastic	CE CSA UL VDE	0.198 lb	89.81 g	10 VDC	27.6 VDC	1.44 W	Locked Rotor Sensor
NMB TECHNOLOGIES BG0703-B053-000-00	0.246 mł/min	8.8 CFM	2 Wire Leads	75.7 mm	Square/Rounded	75.7 mm	70 °C	70 °C	-10 °C	-10 °C	Blower	0.09 A	Ball	0.3 in H2O	74.7 Pa	34.5 dB(A)	24 VDC	30 mm	2550 RPM	Plastic	Plastic	CE CSA UL VDE	0.198 lb	89.81 g	10 VDC	27.6 VDC	2.16 W
NMB TECHNOLOGIES BG0703-B051-00S-00	0.188 mł/min	6.7 CFM	3 Wire Leads	75.7 mm	Square/Rounded	75.7 mm	70 °C	70 °C	-10 °C	-10 °C	Blower	60 mA	Ball			28 dB	24 VDC	30 mm	2000 RPM	Plastic	Plastic	CE CSA UL VDE	0.198 lb	89.81 g	10 VDC	27.6 VDC	1.44 W	Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.78
		10	$ 13.18
		25	$ 12.59
		80	$ 11.88
		160	$ 11.47
		320	$ 11.08
		560	$ 10.78

Description

General part information

BG0703 Series

Fan Blower 24VDC Square/Rounded - 75mm L x 75mm H Ball 10.6 CFM (0.297m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Fans & Blowers Catalog

Datasheet

Fan Agency Approvals

BG Series Part Numbering Guide

Datasheet
