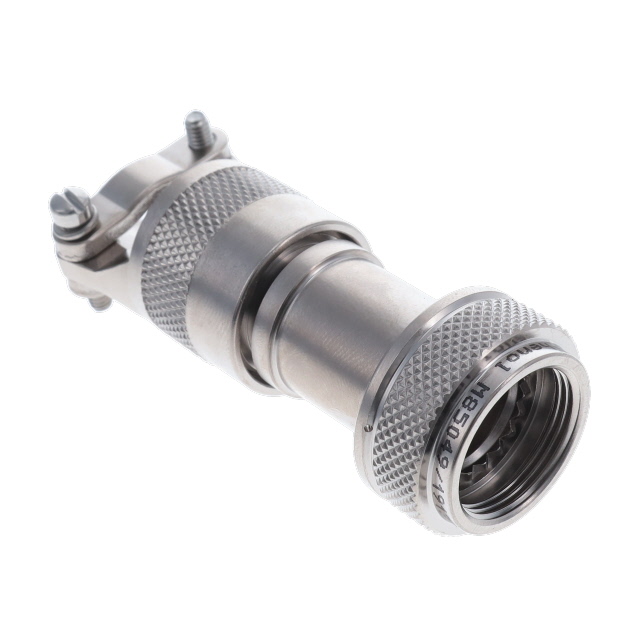

M85049/1913N03

Active

Amphenol Interconnect India

CONN BACKSHELL W/CLMP SZ13 C

Deep-Dive with AI

Search across all available documentation for this part.

M85049/1913N03

Active

Amphenol Interconnect India

CONN BACKSHELL W/CLMP SZ13 C

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/1913N03

Cable Exit	180 °
Cable Opening [Max] [diameter]	9.52 mm
Cable Opening [Max] [diameter]	0.375 in
Cable Opening [Min] [diameter]	6.35 mm
Cable Opening [Min] [diameter]	0.25 in
Color	Silver
Diameter - Outside [diameter]	1 in
Diameter - Outside [diameter]	25.4 mm
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Electroless Nickel
Shell Size - Insert	C
Shell Size - Insert	13
Shielding	Shielded
Type	Backshell, Cable Clamp

M85049/19 Series

...

Part	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Shell Size - Insert	Shielding	Type	Plating	Color	Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Exit	For Use With/Related Products	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol Interconnect India M85049/1925Z06B	Clamp Screws	1.75 in	44.45 mm	J	25	Shielded	Backshell Cable Clamp	Zinc Cobalt	Black	Aluminum Alloy	14.22 mm	0.56 in	19.05 mm	0.75 in	180 °	MIL-DTL-38999 Series III IV
Amphenol Interconnect India M85049/1925Z10B	Clamp Screws	1.75 in	44.45 mm	J	25	Shielded	Backshell Cable Clamp	Zinc Cobalt	Black	Aluminum Alloy					180 °	MIL-DTL-38999 Series III IV	1.06 in 1.25 in	26.92 mm 31.75 mm
Amphenol Interconnect India M85049/1913N03	Clamp Screws	1 in	25.4 mm	C	13	Shielded	Backshell Cable Clamp	Electroless Nickel	Silver	Aluminum Alloy					180 °	MIL-DTL-38999 Series III IV			9.52 mm	6.35 mm	0.25 in	0.375 in
Amphenol Interconnect India M85049/1913Z02A	Clamp Screws	1 in	25.4 mm	C	13	Shielded	Backshell Cable Clamp	Zinc Cobalt	Black	Aluminum Alloy					180 °	MIL-DTL-38999 Series III IV	0.13 in 0.25 in	3.3 mm 6.35 mm
Amphenol Interconnect India M85049/1915Z03A	Clamp Screws	1.1 "	27.94 mm	D	15	Shielded	Backshell Cable Clamp	Zinc Cobalt	Black	Aluminum Alloy	6.35 mm	0.25 in		0.38 in	180 °	MIL-DTL-38999 Series III IV							9.65 mm
Amphenol Interconnect India M85049/1923Z05B	Clamp Screws	1.65 "	41.91 mm	H	23	Shielded	Backshell Cable Clamp	Zinc Cobalt	Black	Aluminum Alloy					180 °	MIL-DTL-38999 Series III IV								11.18 mm 16 mm	0.44 in 0.63 in
Amphenol Interconnect India M85049/1919Z07A	Clamp Screws	1.4 in	35.56 mm	F	19	Shielded	Backshell Cable Clamp	Zinc Cobalt	Black	Aluminum Alloy					180 °	MIL-DTL-38999 Series III IV			22.35 mm	17.53 mm	0.69 in	0.88 in
Amphenol Interconnect India M85049/1923Z09C	Clamp Screws	1.65 "	41.91 mm	H	23	Shielded	Backshell Cable Clamp	Zinc Cobalt	Black	Aluminum Alloy					180 °	MIL-DTL-38999 Series III IV			28.7 mm	23.88 mm	0.94 in	1.13 in
Amphenol Interconnect India M85049/1921Z05B	Clamp Screws	1.5 in	38.1 mm	G	21	Shielded	Backshell Cable Clamp	Zinc Cobalt	Black	Aluminum Alloy					180 °	MIL-DTL-38999 Series III IV								11.18 mm 16 mm	0.44 in 0.63 in
Amphenol Interconnect India M85049/1923Z09A	Clamp Screws	1.65 "	41.91 mm	H	23	Shielded	Backshell Cable Clamp	Zinc Cobalt	Black	Aluminum Alloy					180 °	MIL-DTL-38999 Series III IV			28.7 mm	23.88 mm	0.94 in	1.13 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 959.29
		1	$ 45.53
		25	$ 40.18
		100	$ 36.70

Description

General part information

M85049/19 Series

Silver Connector Backshell, Cable Clamp 13, C

Documents

Technical documentation and resources

No documents available
