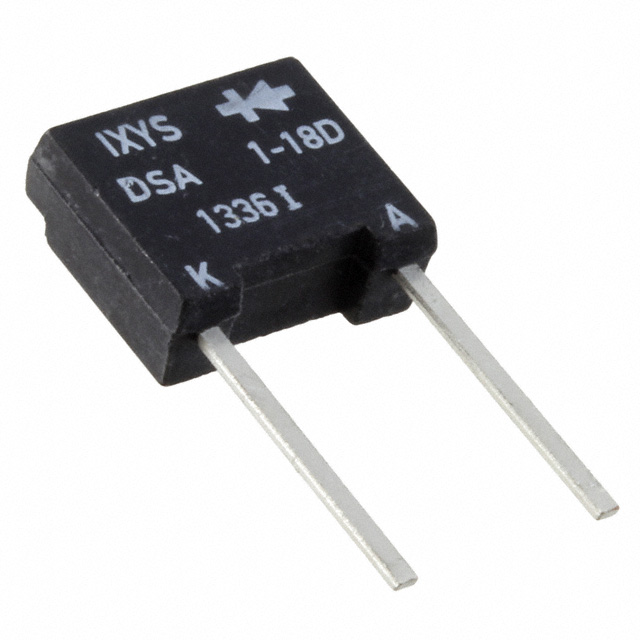

DSA1-18D

Active

IXYS

DIODE AVALANCHE 1.8KV 2.3A

Search across all available documentation for this part.

Active

IXYS

DIODE AVALANCHE 1.8KV 2.3A

Technical Specifications

Parameters and characteristics for this part

Specification	DSA1-18D

Current - Average Rectified (Io)	2.3 A
Current - Reverse Leakage @ Vr	700 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Radial
Speed	Standard Recovery >500ns
Speed	200 mA
Technology	Avalanche
Voltage - DC Reverse (Vr) (Max) [Max]	1800 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.34 V

Part	Package / Case	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Speed	Speed	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
IXYS DSA1-18D	Radial	2.3 A	700 µA	Standard Recovery >500ns	200 mA	Through Hole	1800 V	1.34 V	Avalanche	150 °C	-40 °C
IXYS DSA1-12D	Radial	2.3 A	700 µA	Standard Recovery >500ns	200 mA	Through Hole	1.2 kV	1.34 V	Avalanche	150 °C	-40 °C
IXYS DSA1-16D	Radial	2.3 A	700 µA	Standard Recovery >500ns	200 mA	Through Hole		1.34 V	Avalanche	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1800 V 2.3A Through Hole
