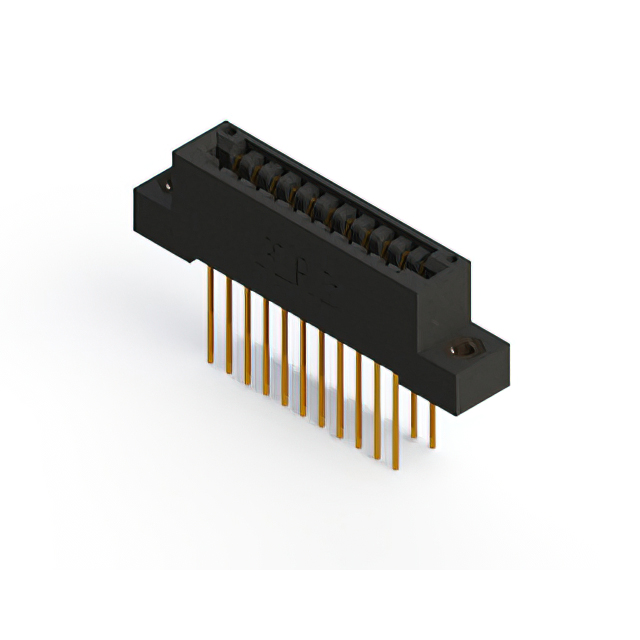

896-022-541-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-022-541-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-022-541-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
896-022 Series
...
| Part | Color | Read Out | Contact Material | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Type | Pitch [x] | Pitch [x] | Gender | Card Type | Number of Positions/Bay/Row [custom] | Contact Finish | Termination | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Number of Rows | Features | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | Single | Copper Alloy | 1 | 125 °C | -40 °C | Through Hole | Cantilever | 0.125 in | 3.18 mm | Female | Non Specified - Single Edge | 22 | Gold | Wire Wrap | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | |||||
EDAC Inc. | Black | Dual | Copper Alloy | 2 | 125 °C | -40 °C | Board Edge Straddle Mount | Cantilever | 0.125 in | 3.18 mm | Female | Non Specified - Dual Edge | 11 | Gold | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | 2 | Card Extender | ||||
EDAC Inc. | Black | Dual | Copper Alloy | 2 | 125 °C | -40 °C | Through Hole | Cantilever | 0.125 in | 3.18 mm | Female | Non Specified - Dual Edge | 11 | Gold | Wire Wrap | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Black | Dual | Copper Alloy | 2 | 125 °C | -40 °C | Through Hole | Cantilever | 0.125 in | 3.18 mm | Female | Non Specified - Dual Edge | 11 | Gold | Solder | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | 2 | |||||
EDAC Inc. | Black | Dual | Copper Alloy | 2 | 125 °C | -40 °C | Through Hole | Cantilever | 0.125 in | 3.18 mm | Female | Non Specified - Dual Edge | 11 | Gold | Wire Wrap | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | 2 | |||||
EDAC Inc. | Black | Dual | Copper Alloy | 2 | 125 °C | -40 °C | Through Hole Right Angle | Cantilever | 0.125 in | 3.18 mm | Female | Non Specified - Dual Edge | 11 | Gold | Solder | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 2 | 3.25 mm | 0.128 " | |||
EDAC Inc. | Black | Dual | Copper Alloy | 2 | 125 °C | -40 °C | Through Hole | Cantilever | 0.125 in | 3.18 mm | Female | Non Specified - Dual Edge | 11 | Gold | Wire Wrap | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | 2 | |||||
EDAC Inc. | Black | Single | Copper Alloy | 1 | 125 °C | -40 °C | Through Hole Right Angle | Cantilever | 0.125 in | 3.18 mm | Female | Non Specified - Single Edge | 22 | Gold | Solder | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | 1 | 2.95 mm | 0.116 in | |||
EDAC Inc. | Black | Dual | Copper Alloy | 2 | 125 °C | -40 °C | Through Hole | Cantilever | 0.125 in | 3.18 mm | Female | Non Specified - Dual Edge | 11 | Gold | Solder | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | ||||||
EDAC Inc. | Black | Single | Copper Alloy | 1 | 125 °C | -40 °C | Through Hole Right Angle | Cantilever | 0.125 in | 3.18 mm | Female | Non Specified - Single Edge | 22 | Gold | Solder | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 53.52 | |
Description
General part information
896-022 Series
22 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
