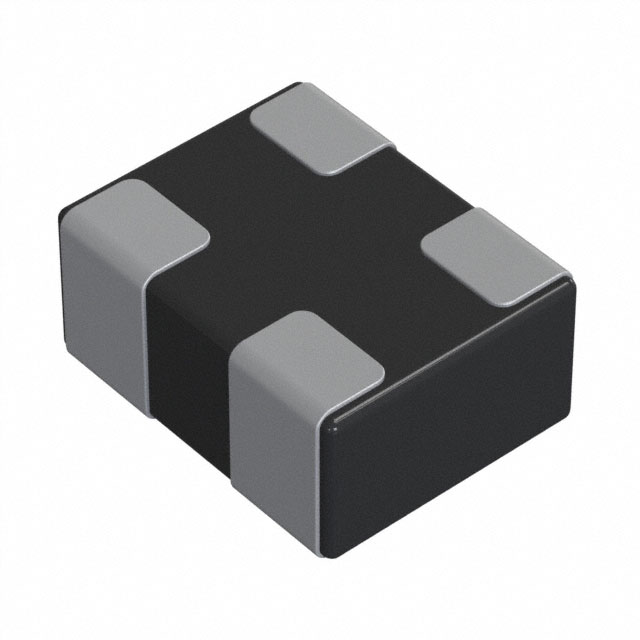

DLP0QSA350HL2D
ActiveMurata Power Solutions Inc.
CMC 100MA 2LN 35 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DLP0QSA350HL2D
ActiveMurata Power Solutions Inc.
CMC 100MA 2LN 35 OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLP0QSA350HL2D |
|---|---|
| Current Rating (Max) [Max] | 100 mA |
| DC Resistance (DCR) (Max) [Max] | 2.75 Ohm |
| Height (Max) [Max] | 0.35 mm |
| Height (Max) [Max] | 0.014 in |
| Impedance @ Frequency | 35 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0505 Metric |
| Package / Case | 4 Lead |
| Package / Case | 0202 |
| Size / Dimension [x] | 0.026 in |
| Size / Dimension [x] | 0.65 mm |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.5 mm |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DLP0QSA Series
2 Line Common Mode Choke Surface Mount 35 Ohms @ 100 MHz 100mA DCR 2.75Ohm
