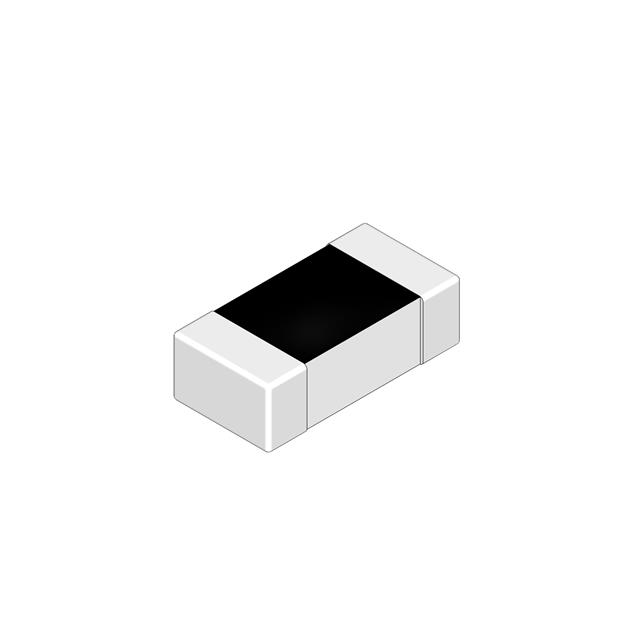

TFE10402V06B0DG
ActiveINPAQ Technology Co., Ltd
TVS DIODE 6VWM 20VC 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TFE10402V06B0DG
ActiveINPAQ Technology Co., Ltd
TVS DIODE 6VWM 20VC 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TFE10402V06B0DG |
|---|---|
| Applications | HDMI, USB |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 0.05 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Power Line Protection | False |
| Supplier Device Package | 0402 |
| Type | Zener |
| Voltage - Clamping (Max) @ Ipp | 20 V |
| Voltage - Reverse Standoff (Typ) [Max] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 5 | $ 0.06 | |||
| 10 | $ 0.05 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.03 | |||
| 5000 | $ 0.03 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 5 | $ 0.06 | |||
| 10 | $ 0.05 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.03 | |||
| 5000 | $ 0.03 | |||
| Tape & Reel (TR) | 10000 | $ 0.03 | ||
| 20000 | $ 0.03 | |||
| 30000 | $ 0.03 | |||
| 50000 | $ 0.02 | |||
| 70000 | $ 0.02 | |||
| 100000 | $ 0.02 | |||
| 250000 | $ 0.02 | |||
| 500000 | $ 0.02 | |||
Description
General part information
TFE10402V06B0DG
20V (Typ) Clamp Ipp Tvs Diode Surface Mount 0402
