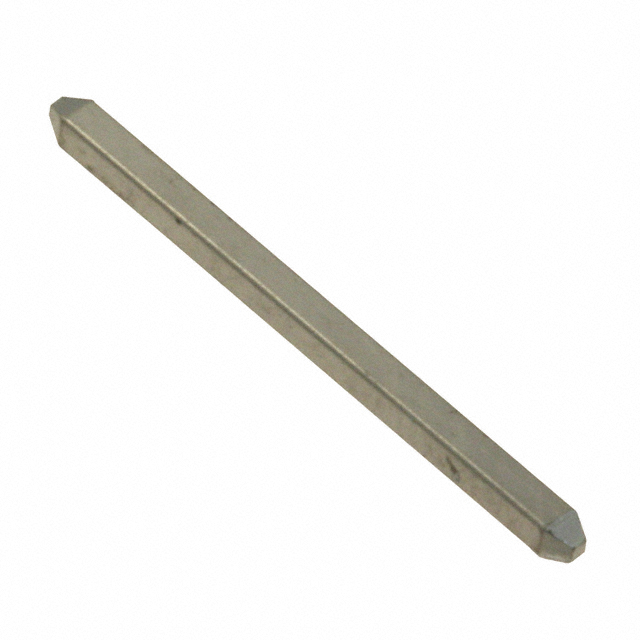

0008500458 - KK 2161 series

0008500458

Obsolete
Molex

CONN PC PIN SQUARE 0.045 TIN

Deep-Dive with AI

Search across all available documentation for this part.

0008500458 - KK 2161 series

0008500458

Obsolete
Molex

CONN PC PIN SQUARE 0.045 TIN

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification0008500458
Board Thickness0.062 in
Board Thickness1.57 mm
Contact FinishTin
Contact Finish Thickness200 Áin
Contact Finish Thickness5.08 Ám
Contact MaterialBrass
InsulationNon-Insulated
Length - Overall [x]0.53 in
Length - Overall [x]13.46 mm
Mounting Hole Diameter [Max]1.35 mm
Mounting Hole Diameter [Max]0.053 in
Mounting Hole Diameter [Min]0.05 "
Mounting Hole Diameter [Min]1.27 mm
Mounting TypeThrough Hole
Pin Size - Above Flange0.045 in
Pin Size - Above Flange1.14 mm
Pin Size - Above FlangeSquare
Pin Size - Below Flange0.045 in
Pin Size - Below Flange1.14 mm
Terminal StyleSmooth
Terminal TypeSingle Post
TerminationPress-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

000850 Series

Single Post Terminal Connector Through Hole Tin 0.045" (1.14mm) Square

Documents

Technical documentation and resources

No documents available
